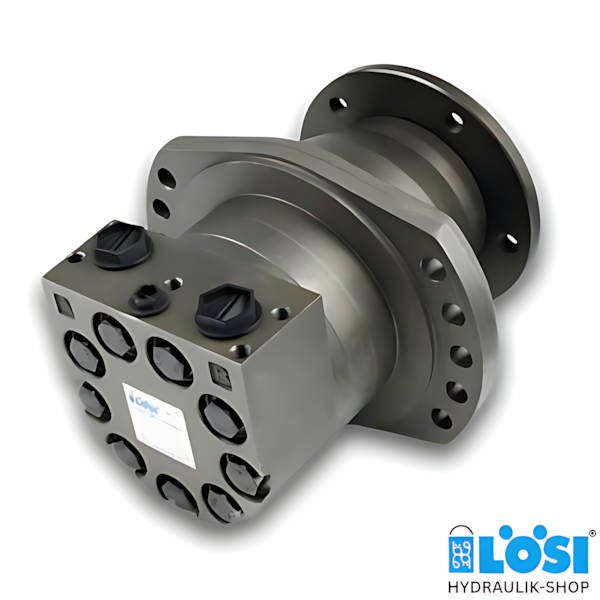

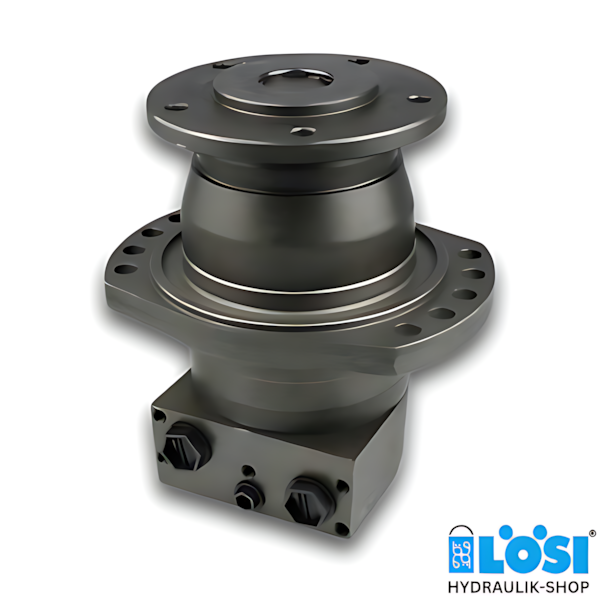

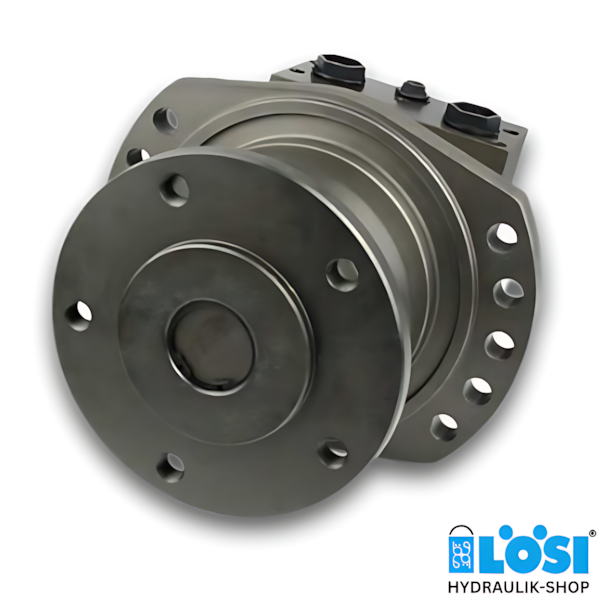

TMF 400 HD Hydraulic Motor

TMF 400 HD, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 410.9
• Side ports 2x G3/4 inch BSPP
• Shaft: Wheel flange threaded holes 5xM14x1.5
• Flange: 10 Holes (hole distance: 210 mm)

Technical Data (for continuous use):

• max. speed: 305 rev/min
• max. torque: 1470 Nm
• max. output: 41 kW
• max. oil flow: 125 l/min
• max. inlet pressure: 270 bar
• minimum speed: 5 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 75 bar

Download datasheet TMF

Special features like Low Leakage, Free Running, or special paint with RAL-code are available for the most motor types. Please ask us for more information.
