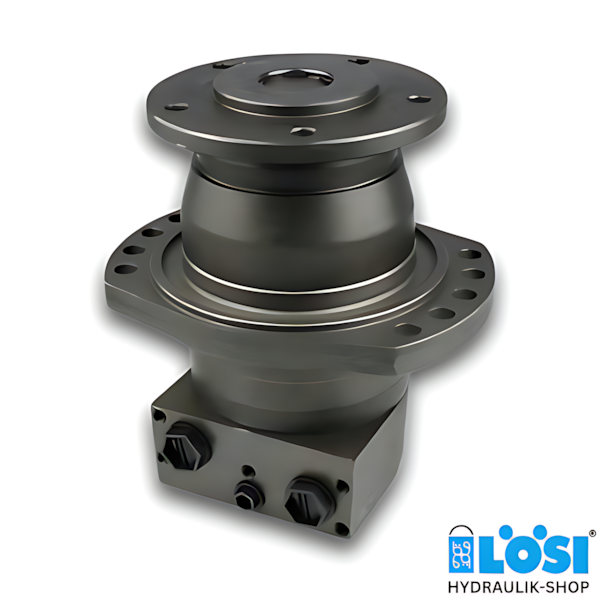

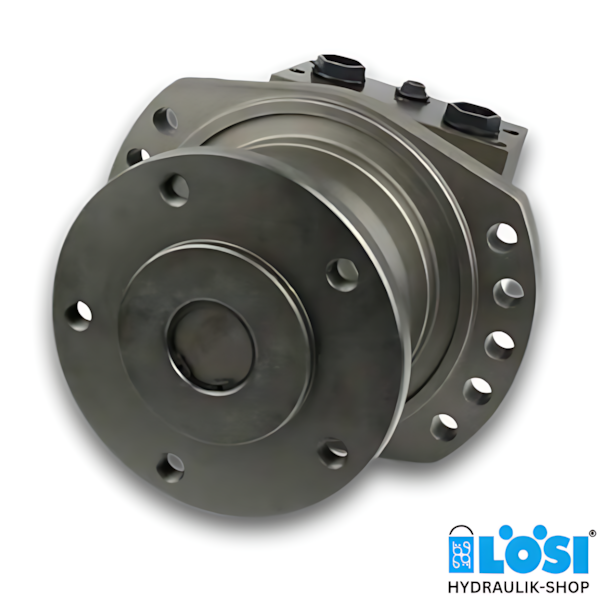

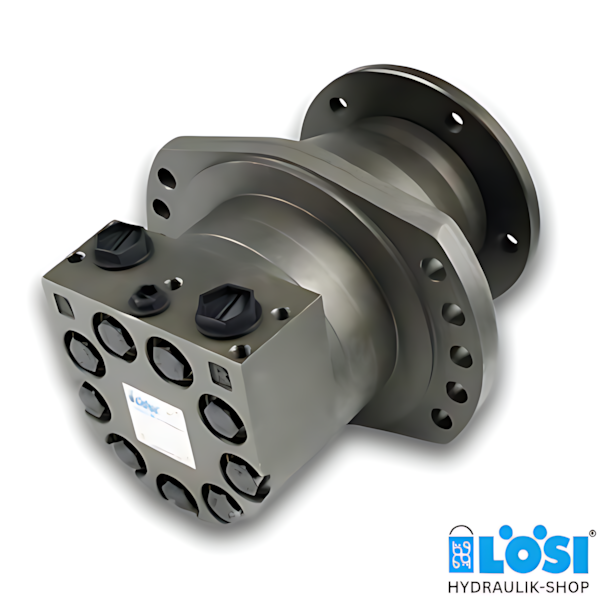

TMF 470 HD, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 475

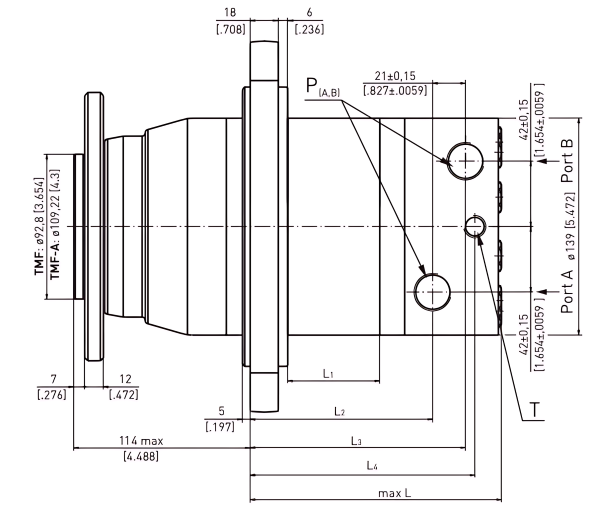

- Side ports 2x G3/4 inch BSPP
- Shaft: Wheel flange threaded holes 5xM14x1,5
- Flange: 10 holes (hole distance: 210 mm)
Technical Data (for continuous use):
- max. speed: 260 rev/min
- max. torque: 1710 Nm
- max. output: 41 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 270 bar
- minimum speed: 5 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 75 bar
Download datasheet TMF
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
