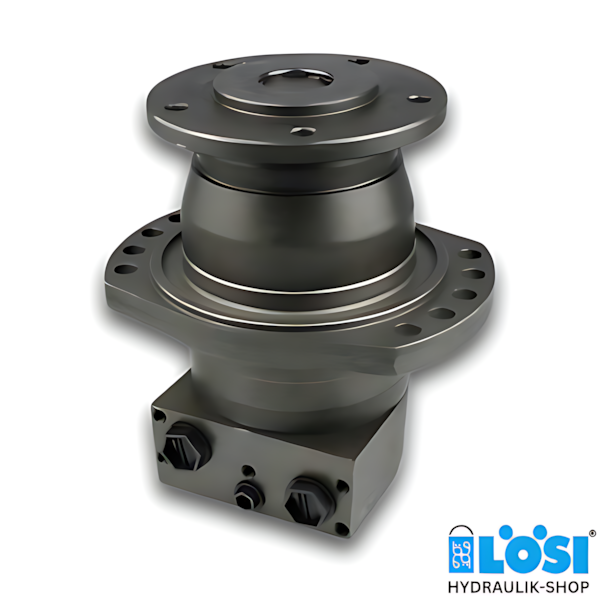

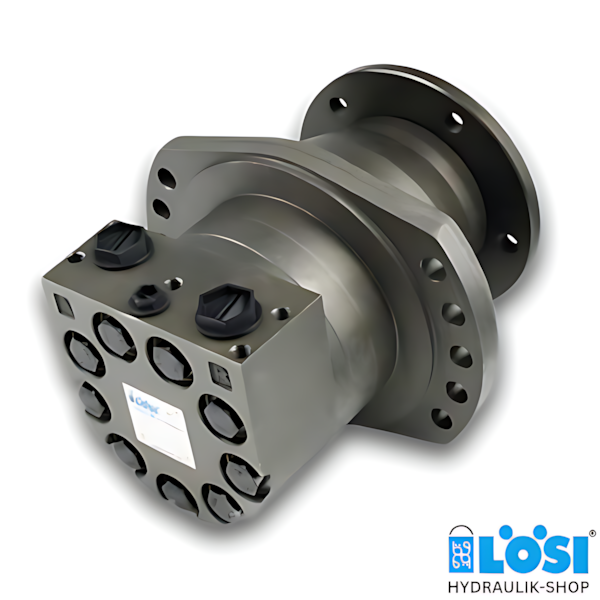

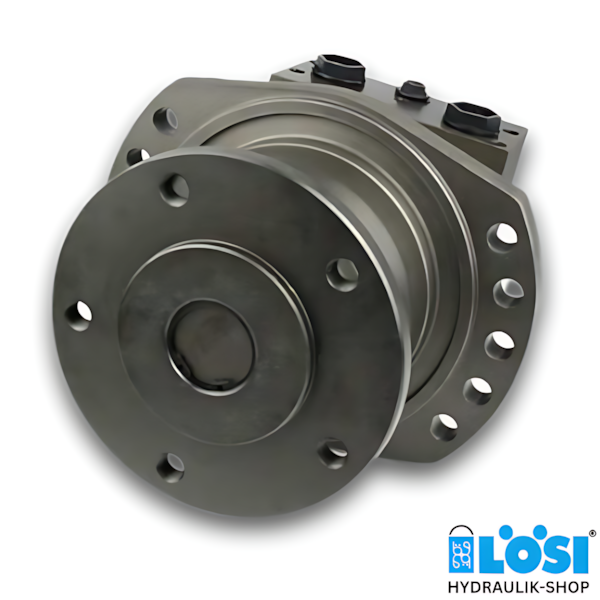

TMF 725 HD, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, with High Pressure Seal
Specifications:
- Displacement [ccm/rev]: 724,3
- Side ports 2x G3/4 inch BSPP
- Shaft: Wheel flange threaded holes 5xM14x1.5
- Flange: 10 Holes (hole distance: 210 mm)
Technical Data (for continuous use):
- max. speed: 170 rev/min
- max. torque: 160 Nm
- max. output: 26 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 270 bar
- minimum speed: 5 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 75 bar
Download datasheet TMF
Special features like Low Leakage, corrosion protected paint or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type TMF? Do you need support in choosing the right TMF hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
