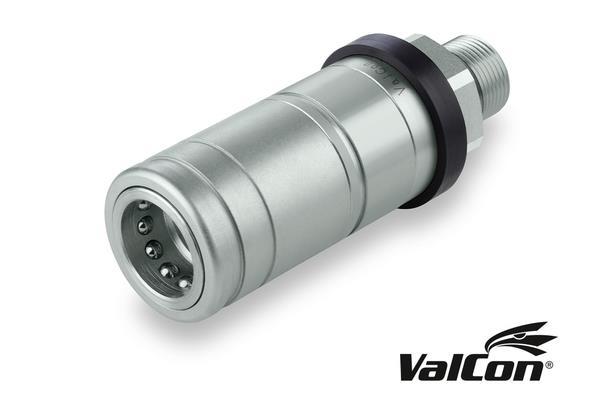

Valcon® Plug-in coupling series VC-AGRI Female

Push-pull female couplings for agriculture. Can be coupled with a male half in DN12 according to ISO 7241-A. The plug can be coupled under pressure, with the VC-AGRI sleeve.

Benefits:

• Push-pull coupling, connectable with male under residual pressure.
• Breakaway function.
• Can be screwed directly into valve ports or rigid pipes.
• ISO 7241 part A interchange.

Material:

• Material Casing: high-resistance steel
• Material sealing: NBR

Surface:

• Material: Chrome 3
• Resistance against white rust: 200 h
• Resistance against red rust: 400 h

Temperature range:

• -30°C to +120°C

Technical data:

• BG: 3
• DN: 12
• Size: 08
• Inch: 1/2"
• Thread (GA): M22x1.5
• Working pressure [bar]: 250
• l/min at 2 bar: 60L
• Outer Ø sleeve (mm): 38.0
• Length sleeve (mm): 124.1
• SW1 (mm): 27
• Standard: ISO 7241-A
