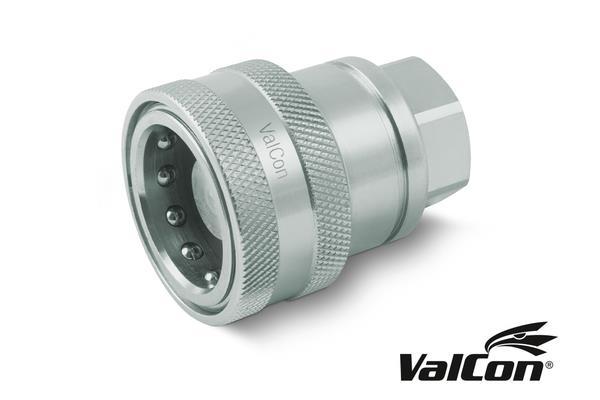

Valcon® Plug-in coupling series VC-BC (female) VC-BC-IG1/2BSP12M
Plug-in coupling series VC-BC (female)
For applications in the field of vehicle construction (brake lines), interchangeable according to ISO 5676 and NFU 16006
General data:
- Material Casing: Steel
- Material sealing: NBR
- Material support ring: PTFE
Surface:
- Material: Zn-Fe (Chrome III)
- Resistance against white rust [h]: 96
- Resistance against red rust [h]: 200
- Temperature range: -25°C to +125°C
Specifications:
- Working pressure (bar): 150
- BG: 3
- DN: 12
- Size: 08
- Inch: 1/2"
- Thread (GA): 1/2"
- SW (mm): 27
- Outer Ø plug [mm]: 44.0
- Length plug (mm): 56.0
- l/min at 2 bar: 42
- Standard: ISO 5676
- Form of the sealing valve: Flat Poppet Type
