BRAKE PIPE COUPLING PLUG DN12

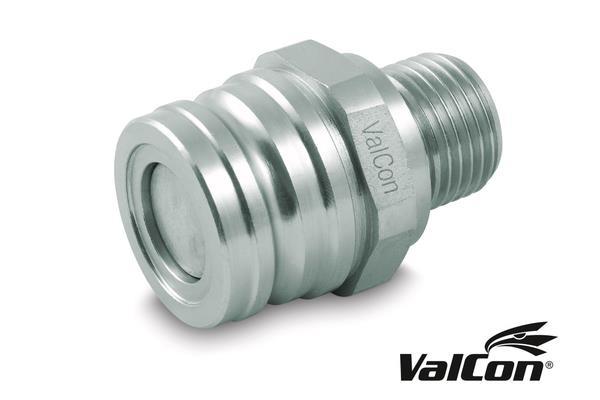

Valcon® Plug-in coupling series VC-BC (male) VC-BC-CELS15-12S
BRAKE PIPE COUPLING PLUG DN12

Valcon® Plug-in coupling series VC-BC (male) VC-BC-CELS15-12S

Approx. 3-4 days Approx. 3-4 days (abroad may vary)
21,74 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Plug-in coupling series VC-BC (male)

For applications in the field of vehicle construction (brake lines), interchangeable according to ISO 5676 and NFU 16006

General data:

  • Material Casing: Steel
  • Material sealing: NBR
  • Material support ring: PTFE

Surface:

  • Material: Zn-Fe (Chrome III)
  • Resistance against white rust [h]: 96
  • Resistance against red rust [h]: 200
  • Temperature range: -25°C to +125°C

Specifications:

  • Working pressure (bar): 150
  • BG: 3
  • DN: 12
  • Size: 08
  • Inch: 1/2
  • Thread (GA): M22x1.5
  • SW (mm): 32
  • Outer Ø plug [mm]: 30.0
  • Length plug (mm): 51.0
  • l/min at 2 bar: 42
  • Standard: ISO 5676
  • Form of the sealing valve: Flat Poppet Type

VC-BC-CELS15-12S
