Adjustable L-fitting 15L, metric

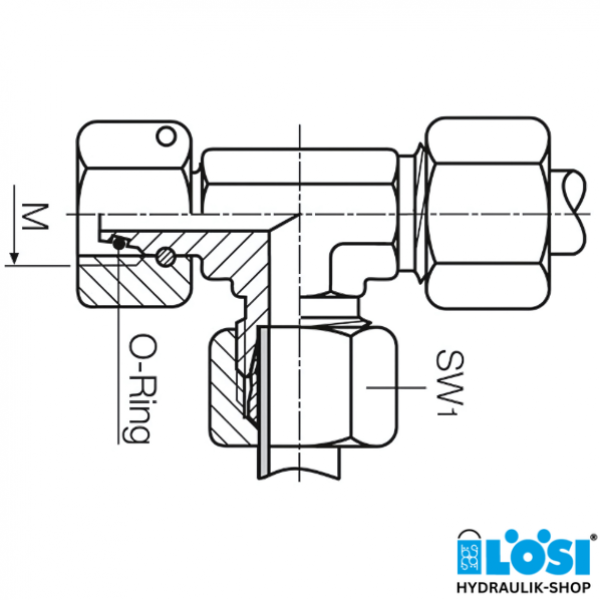

The sealing cone fittings with 24° cone and O-ring guarantee a high level of safety, especially in the event of strong vibrations, pressure surges and temperature fluctuations.
Technical Data:
- Operating Pressure: 315 bar
- Tube Diameter: 15 mm
- Thread 1: M22x1.5 mm
- Thread 1: M22x1.5 mm
- Thread 1: M22x1.5 mm
- Series: light (L)
- SW1: 27 mm
- Connection Type 1: Metric 24°
- Material: Steel
- Surface: Chrome III
Ref.No.: Parker EL15LOMDCF
