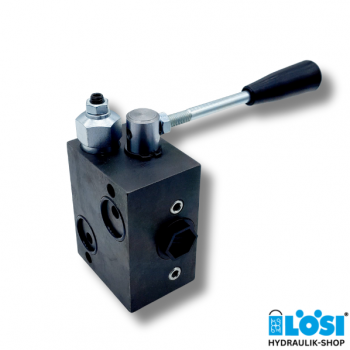

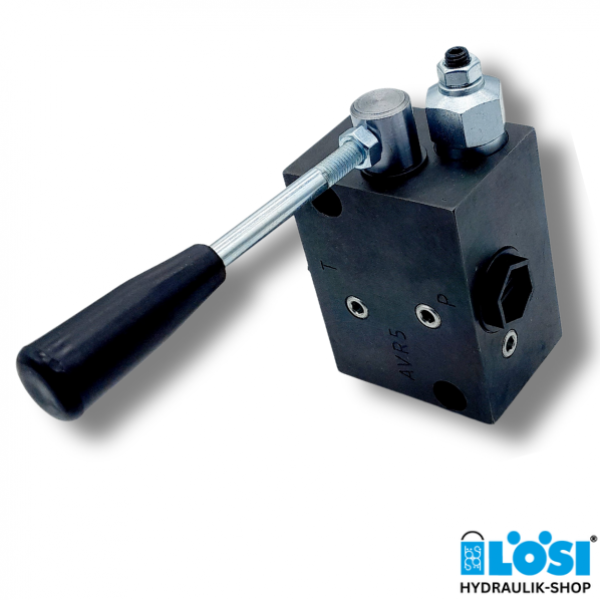

BDR1204 (AV-R-04-G) 4/3 way valve (switch off valve) for EPM / EPRM motors
AV-R-04-G, LöSi hydraulic valve, 4/3 way valve manually operated for EPM / EPRM motors
Specifications:
- 4/3 way valve with pressure relief valve
- A-B-P-T connected
- Maximum flow rate [l/min]: 60
- Connection ports 2x G 1/2 inch BSPP
- Maximum pressure: 250 bar
- Cast iron body
- Manual operation
- For hydraulic motors type EPM / EPRM
- For both motor rotation directions
Hydraulic scheme:
Do you have any questions about our hydraulic valve type AVR04? Do you need support in choosing the right AVR04 hydraulic valve? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
