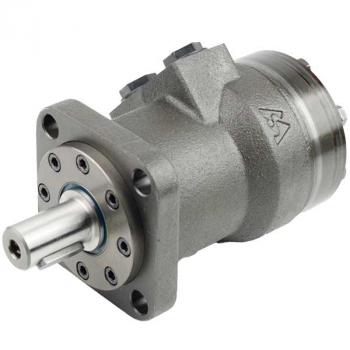

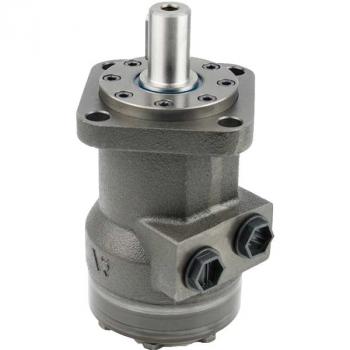

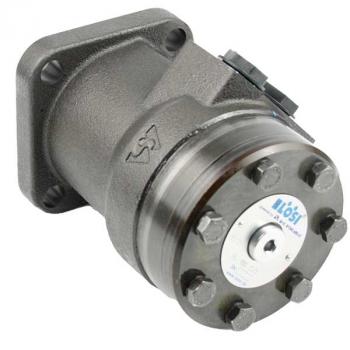

EPRML 80 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 80.3
- Side ports 2x G1/2 inch BSPP
- Shaft: Cylindrical: Ø 25 mm
- SAE A-4 mount, 4-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
- max. speed: 750 rev/min
- max. torque: 195 Nm
- max. output: 12,5 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 100 bar
Download datasheet EPRML
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPRML. Do you need support in choosing the right EPRML hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
