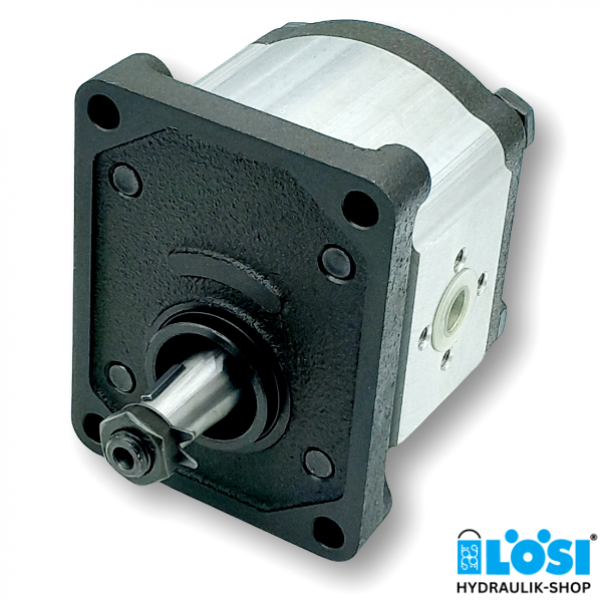

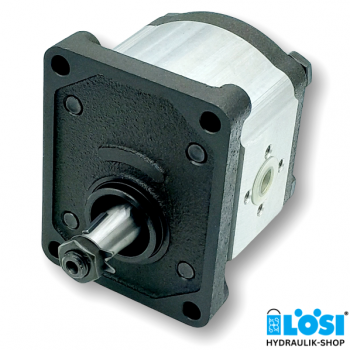

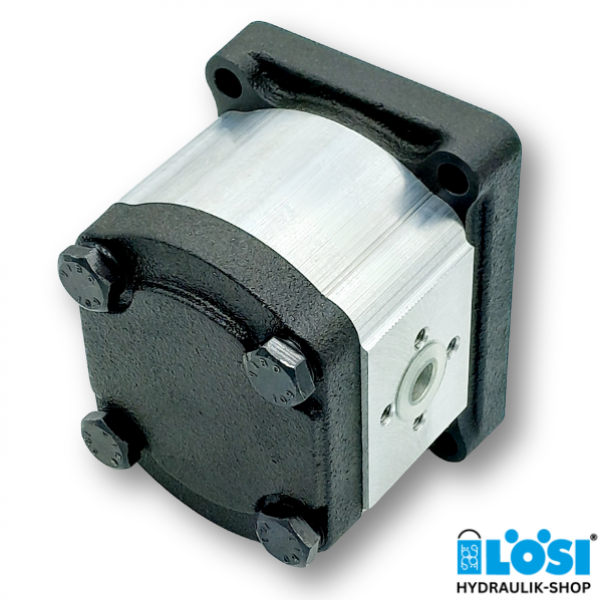

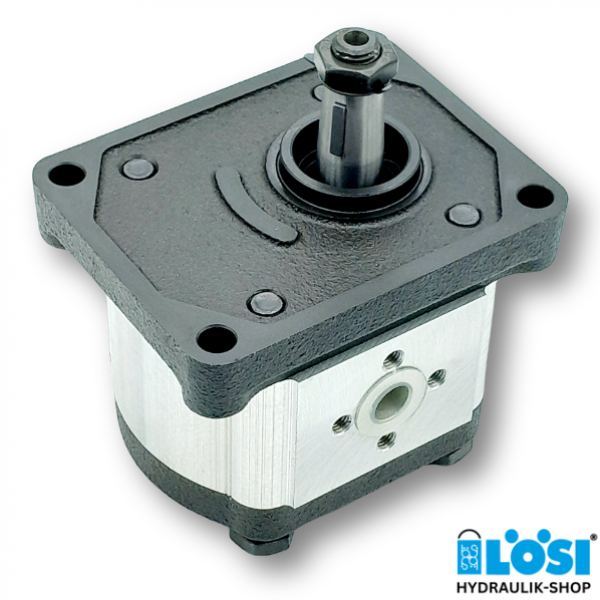

CAP 21140012F, Lösi Hydraulic Gear Pump, Group 2, 14 cm³, European Version
Specifications:
- Displacement [ccm/rev]: 14
- Rotation direction: Right
- Shaft: Tapered: 1:8
- Centering: Ø 36.5 mm
- Flange hole: 4x Ø 9 mm
Technical Data (for continuous use):
- max. speed: 3500 rev/min
- min. flow rate: 19.95 l/min
- max. flow rate: 46.55 l/min
- max. pressure: 250 bar
- Suction connection: Ø 19 mm, BCD Ø 39.7 mm
- Pressure connection: Ø 14.2 mm, BCD Ø 30.2 mm
Download datasheet Gear pumps group 2
Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
