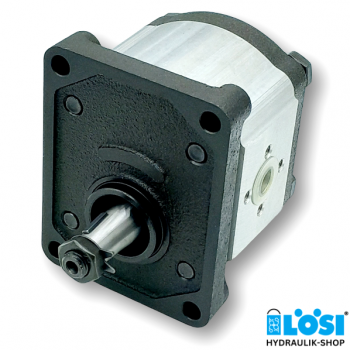

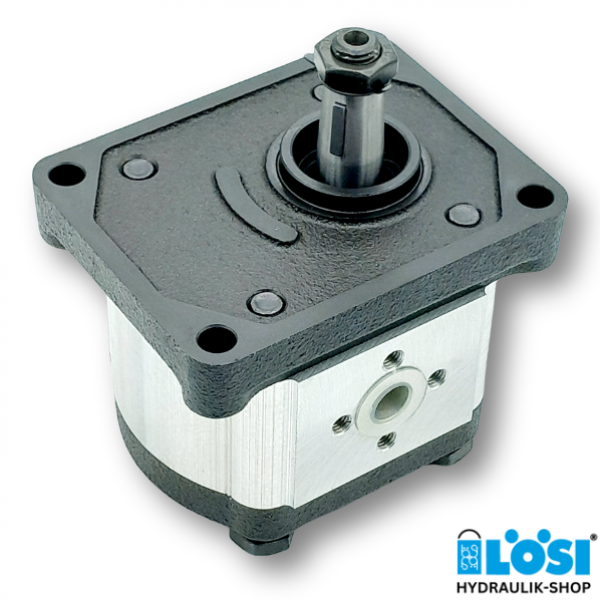

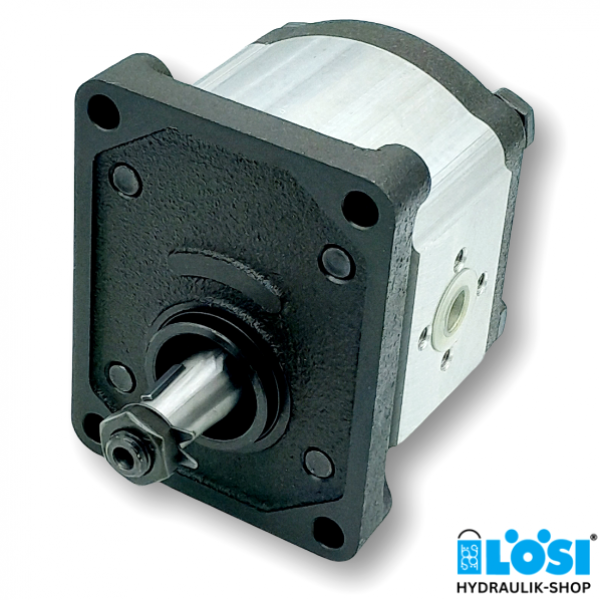

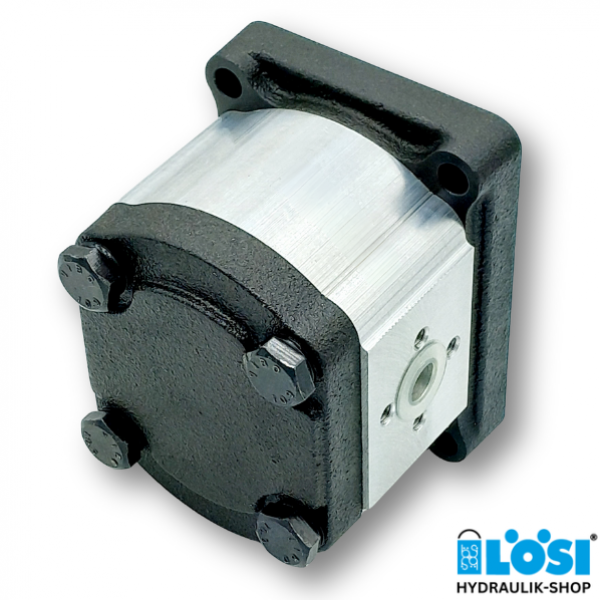

CAP 22250012F, Lösi Hydraulic Gear Pump, Group 2, 25cm³, European Version
Specifications:
- Displacement [ccm/rev]: 25
- Rotation Direction: Left
- Shaft: Tapered: 1:8
- Centering Diameter: Ø36.5 mm
- Flange Hole: 4xØ9 mm
Technical Data (for continuous use):
- Max. Speed: 2000 rev/min
- Min. Flow Rate: 36.00 l/min
- Max. Flow Rate: 48.00 l/min
- Max. Pressure: 160 bar
- Suction Connection: Ø19 mm, BCD Ø39.7 mm
- Pressure Connection: Ø19 mm, BCD Ø39.7 mm
Download Datasheet for Gear Pumps Group 2
Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
Do you have any questions about our gear pumps? Do you need support in choosing the right gear pump? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with WhatsApp.
