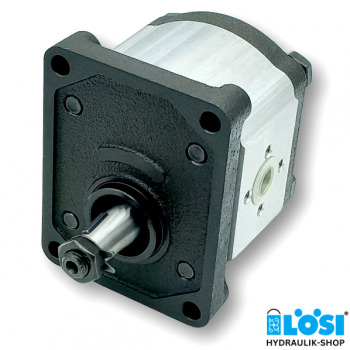

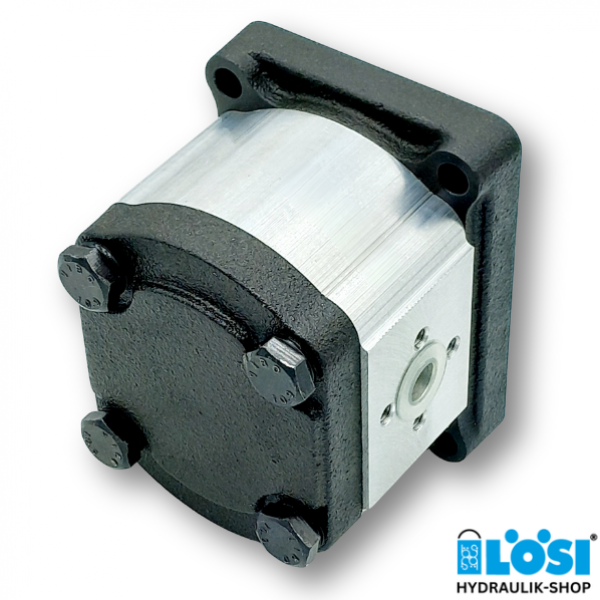

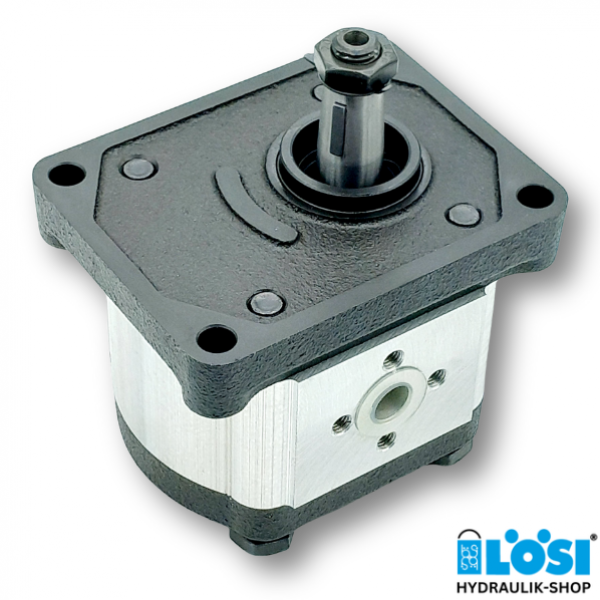

Gear Pump CAP 22450012F

CAP 22450012F, LöSi Hydraulic Gear Pump, Group 2, 4.5cm³, European Version

Specifications:

• Displacement [ccm/rev]: 4.5
• Rotation Direction: Left
• Shaft: Tapered: 1:8
• Centering: Ø36.5 mm
• Flange Hole: 4xØ9 mm

Technical Data (for continuous use):

• max. Speed: 3500 rev/min
• min. Flow Rate: 6.14 l/min
• max. Flow Rate: 14.33 l/min
• max. Pressure: 250 bar
• Suction Connection: Ø13.1 mm, BCD Ø30.2 mm
• Pressure Connection: Ø13.1 mm, BCD Ø30.2 mm

 Download Datasheet Gear Pumps Group 2
