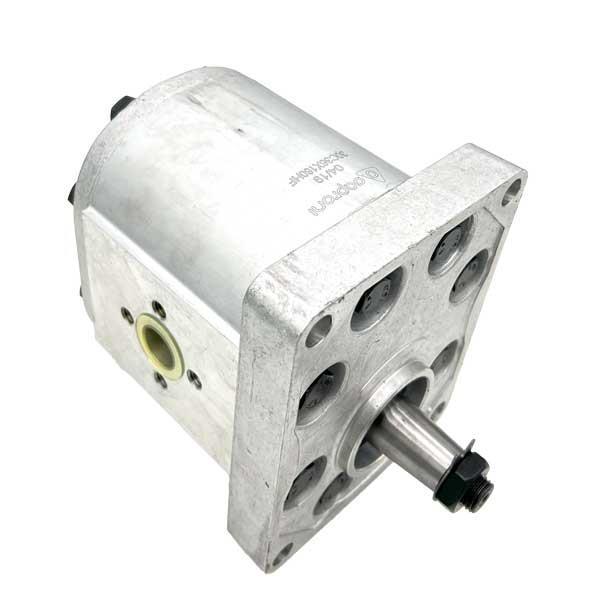

CAP 31500292HF, Lösi Hydraulic Gear Pump, Group 3, 50cm³, DIN Version
Specifications:
- Displacement [ccm/rev]: 50
- Rotation direction: right
- Shaft: tapered 1:8
- Centering: 50.8 mm
- Flange: DIN
- Flange hole: 4xØ11 mm
Technical Data (for continuous use):
- max. Speed: 2100 rev/min
- min. Flow rate: 71.3 l/min
- max. Flow rate: 99.8 l/min
- max. Pressure: 200 bar
- Suction Connection: Ø27 mm, BCDØ51 mm
- Pressure Connection: Ø19 mm, BCDØ40 mm
Download datasheet for Gear Pumps, Group 3
Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
