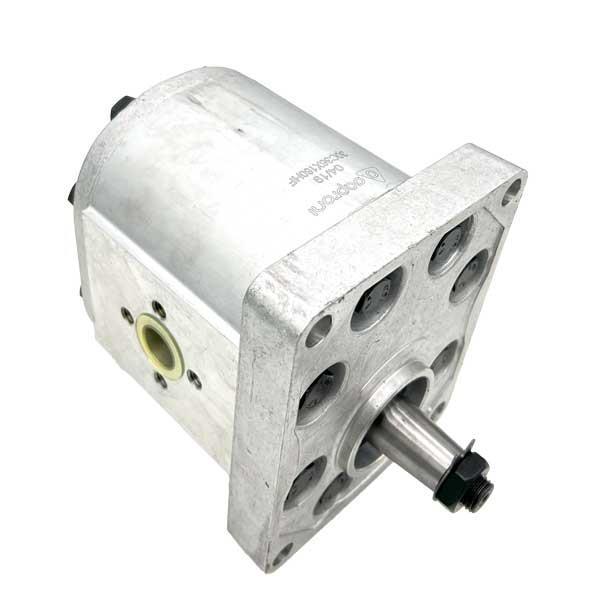

CAP 31600292HF, Lösi Hydraulic Gear Pump, Group 3, 60cm³, DIN Version
Specifications:
- Displacement [ccm/rev]: 60
- Rotation direction: right
- Shaft: tapered 1:8
- Centering: 50.8 mm
- Flange: DIN
- Flange hole: 4xØ11 mm
Technical Data (for continuous use):
- max. Speed: 1750 rev/min
- min. Flow rate: 85.5 l/min
- max. Flow rate: 99.8 l/min
- max. Pressure: 180 bar
- Suction connection: Ø51 mm, BCD Ø27 mm
- Pressure connection: Ø40 mm, BCD Ø19 mm
Download datasheet for Gear Pumps, Group 3
Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
Do you have any questions about our gear pumps? Do you need support in choosing the right gear pump? Then please contact us by phone on +49 631 352140, via our contact form, by email at shop@loesi.de or with WhatsApp.
