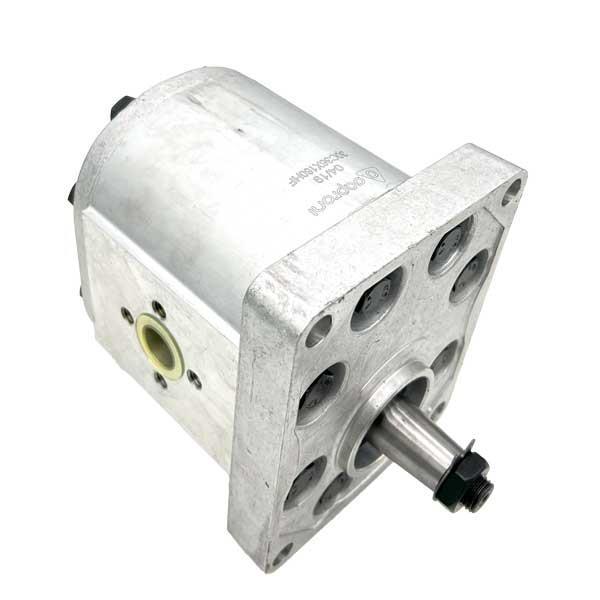

CAP 32280292HF, Lösi Hydraulic Gear Pump, Group 3, 28cm³, DIN Version
Specifications:
- Displacement [ccm/rev]: 28
- Rotation direction: Left
- Shaft: Tapered 1:8
- Centering: 50.8 mm
- Flange: DIN
- Flange holes: 4xØ11 mm
Technical Data (for continuous use):
- Max. speed: 3000 rev/min
- Min. flow rate: 39.5 l/min
- Max. flow rate: 79 l/min
- Max. pressure: 250 bar
- Suction connection: Ø40 mm, BCDØ19 mm
- Pressure connection: Ø40 mm, BCDØ19 mm
Download datasheet for Gear Pumps Group 3
Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
