Description

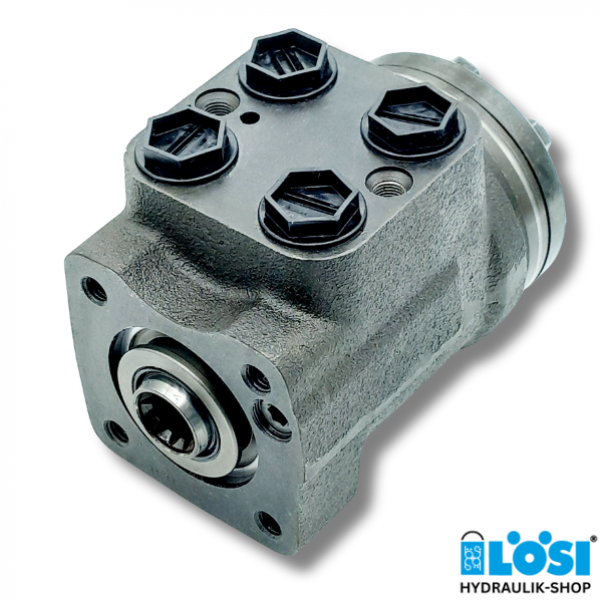

HKU 100/4, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 99
  • Ports 4x G 1/2 inch BSPP
  • Version 4: Open Center - Non Load reaction
  • Mounting Dimension [mm]: 139.8

Technical Data:

  • Rated flow: 10 l/min
  • Rated pressure: 170 bar
  • Max. continuous pressure in Line T: 25 bar
  • Max. torque with servo amplifying: 3 Nm
  • Max. torque without servo amplifying: 120 Nm

Download datasheet HKU

Do you have any questions about our Steering Unit Type HKU? Do you need support in choosing the right Steering Unit HKU? Then please contact us by phone on +49 631 352140, via our contact form , by email at shop@loesi.de or with What's App .
