HKU 200/3 Hydrostatic Steering Unit
HKU 200/3 Hydrostatic Steering Unit
HKU 200/3 Hydrostatic Steering Unit

HKU 200/3 Hydrostatic Steering Unit

Approx. 8 Weeks Approx. 8 Weeks (abroad may vary)
Price display for registered customers only

Add to wish list
Ask about product
Description

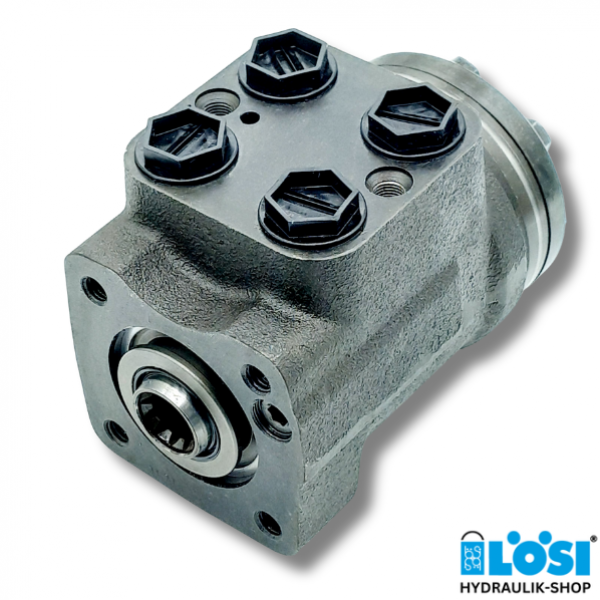

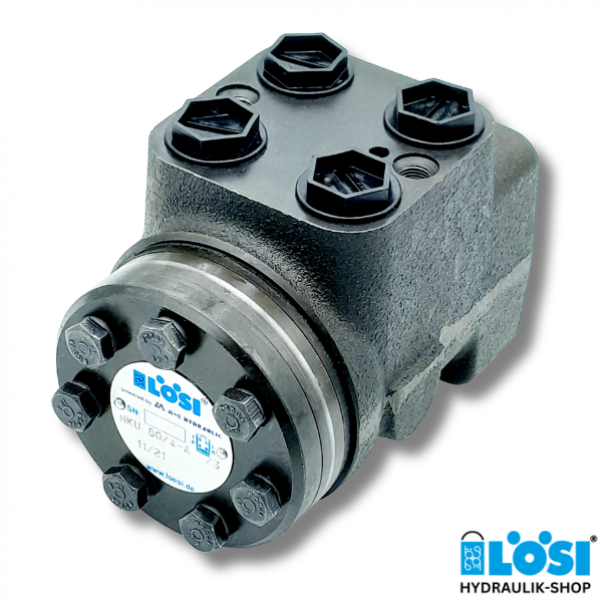

HKU 200/3, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 198
  • Ports: 4x G 1/2 inch BSPP
  • Version 3: Open Center - Load Reaction
  • Mounting Dimension [mm]: 152.2

Technical Data:

  • Rated Flow: 20 l/min
  • Rated Pressure: 170 bar
  • Max. Continuous Pressure in Line T: 25 bar
  • Max. Torque at Servo Amplifying: 3 Nm
  • Max. Torque without Servo Amplifying: 120 Nm

Download Datasheet HKU

Do you have any questions about our Steering Unit Type HKU? Do you need support in choosing the right Steering Unit HKU? Then please contact us by phone on +49 631 352140, via our contact form, by email at shop@loesi.de or with WhatsApp.
