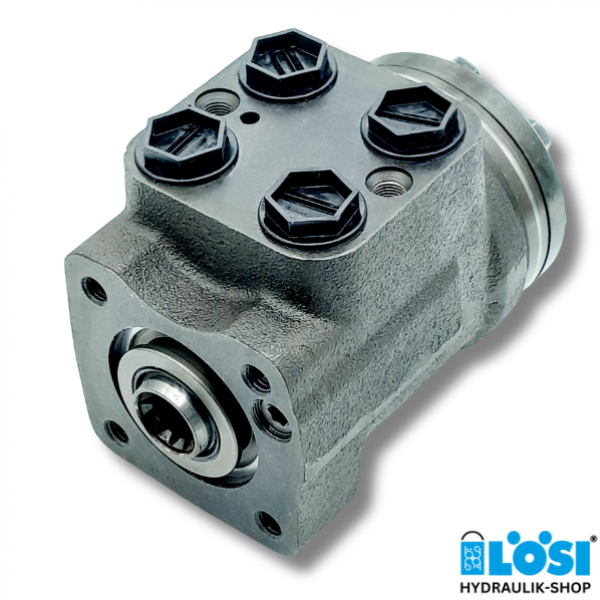

HKU 320/4 A, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 316.8
  • Ports: 4x 3/4-16 UNF
  • Version 4: Open Center - Non Load reaction
  • Mounting Dimension [mm]: 168.2

Technical Data:

  • Rated flow: 32 l/min
  • Rated pressure: 170 bar
  • max. Continuous pressure in Line T: 25 bar
  • max. Torque at servoamplifying: 3 Nm
  • max. Torque without servoamplifying: 120 Nm

Download datasheet HKU
