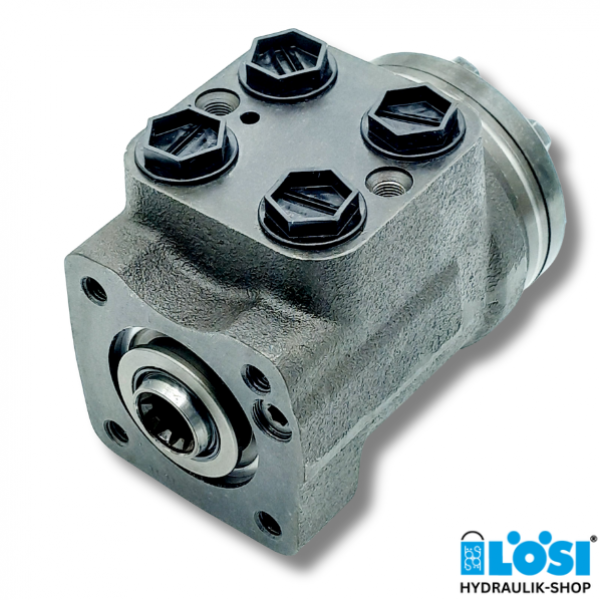

HKU 40/3, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 39.6
  • Ports: 4x G 1/2 inch BSPP
  • Version 3: Open Center - Load Reaction
  • Mounting Dimension [mm]: 130.85

Technical Data:

  • Rated flow: 4 l/min
  • Rated pressure: 140 bar
  • Max. Continuous Pressure in Line T: 25 bar
  • Max. Torque at servo amplifying: 3 Nm
  • Max. Torque without servo amplifying: 120 Nm

Download datasheet HKU
