Description

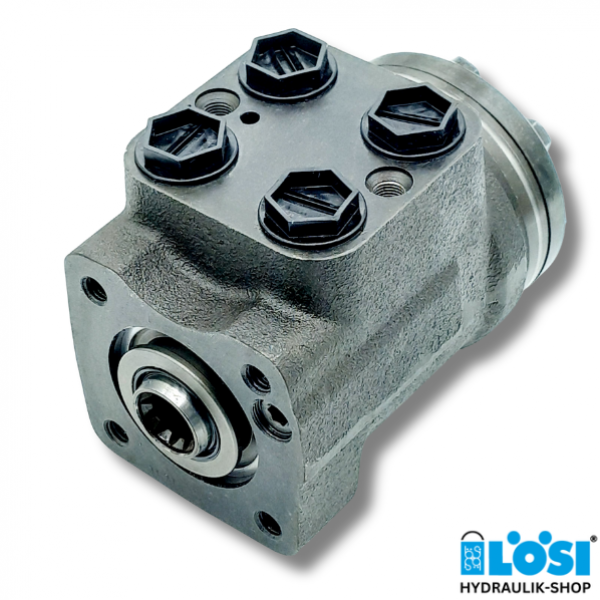

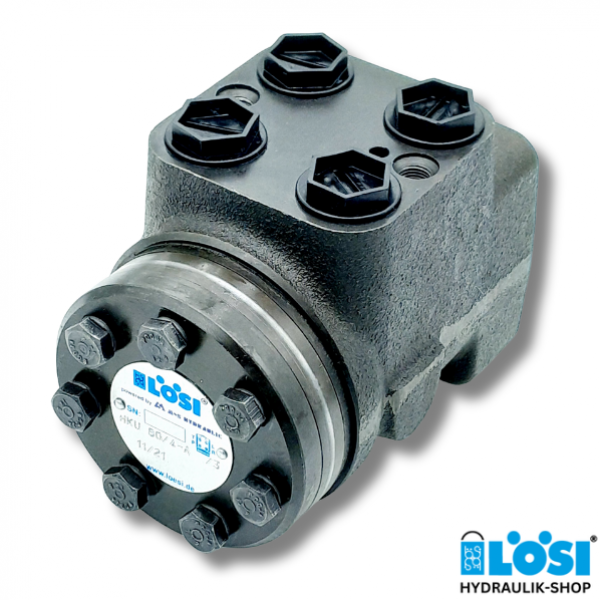

HKU 50/3 A, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [ccm/rev]: 49.5
  • Ports: 4x 3/4-16 UNF
  • Version 3: Open Center - Load Reaction
  • Mounting Dimension [mm]: 132.20

Technical Data:

  • Rated flow: 5 l/min
  • Rated pressure: 140 bar
  • Max. continuous pressure in Line T: 25 bar
  • Max. torque with servo amplifying: 3 Nm
  • Max. torque without servo amplifying: 120 Nm

Download datasheet HKU

Do you have any questions about our Steering Unit Type HKU? Do you need support in choosing the right Steering Unit HKU? Then please contact us by phone on +49 631 351240, via our contact form , by email at shop@loesi.de or with What's App .
