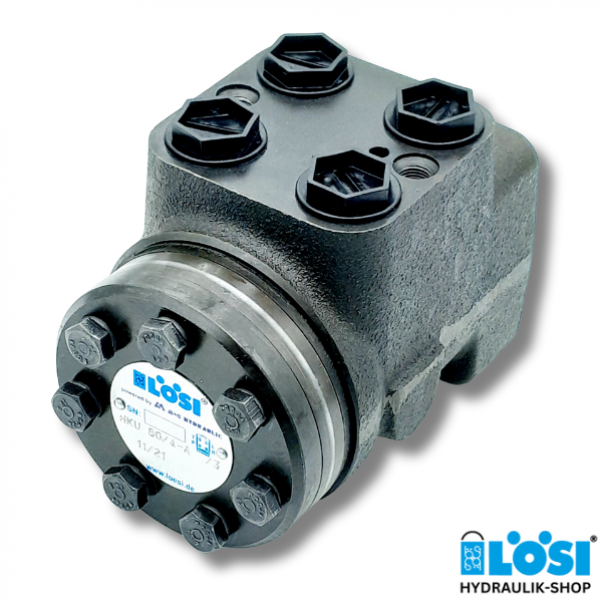

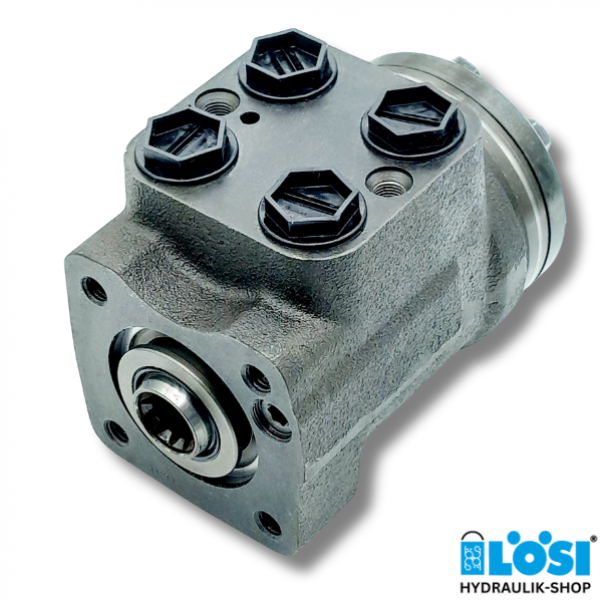

HKU 63/4, LöSi Hydrostatic Steering Unit
Specifications:
- Displacement [cm³/rev]: 65.6
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Non Load reaction
- Mounting Dimension [mm]: 133.9
Technical Data:
- Rated flow: 6 l/min
- Rated pressure: 170 bar
- Max. continuous pressure in Line T: 25 bar
- Max. torque at servo amplifying: 3 Nm
- Max. torque without servo amplifying: 120 Nm
Download datasheet HKU
Do you have any questions about our Steering Unit Type HKU? Do you need support in choosing the right Steering Unit HKU? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
