Description

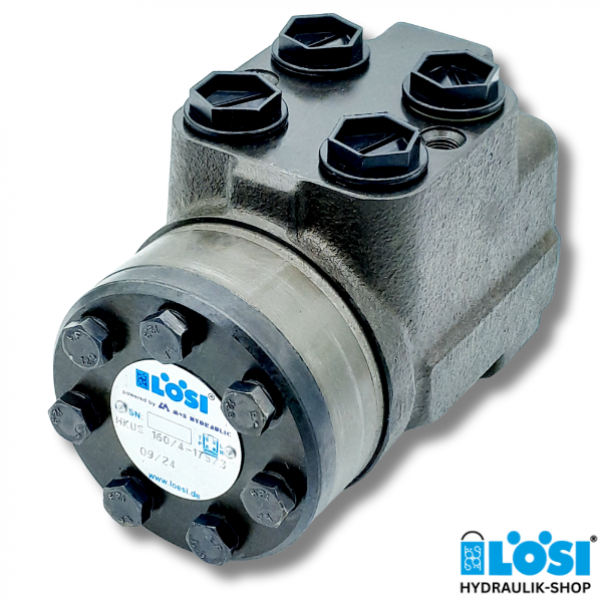

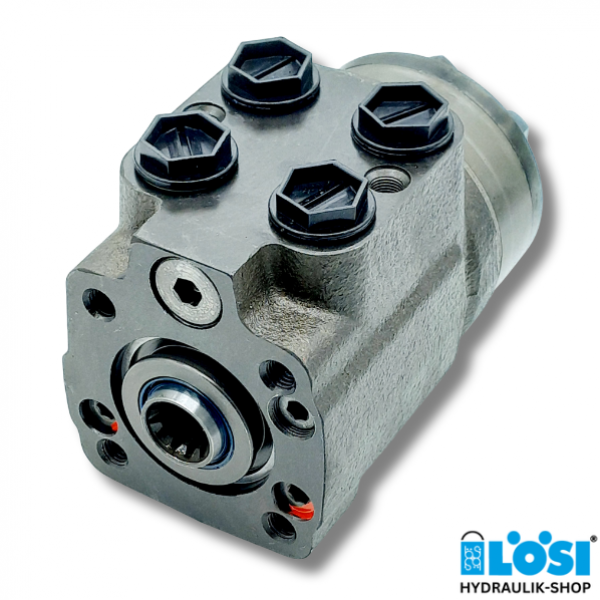

HKUS 100/8-140, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 99.0
  • Ports: 4x G 1/2 inch BSPP
  • Version 8: Open Center - Non Load reaction
  • Mounting Dimension [mm]: 138.8

Technical Data:

  • Rated flow: 10 l/min
  • Rated pressure: 170 bar
  • Relief valve pressure setting: 140 bar*
  • No Shock valve
  • max. Continuous pressure in Line T: 25 bar
  • max. Torque at servo amplifying: 3 Nm
  • max. Torque without servo amplifying: 120 Nm

*Please tell us the desired pressure setting of the pressure relief valve: from 80 bar to 170 bar.

Download datasheet HKUS

Do you have any questions about our Steering Unit Type HKUS? Do you need support in choosing the right Steering Unit HKUS? Then please contact us by phone on +49 631 352140, via our contactform , by email at shop@loesi.de or with What's App .
