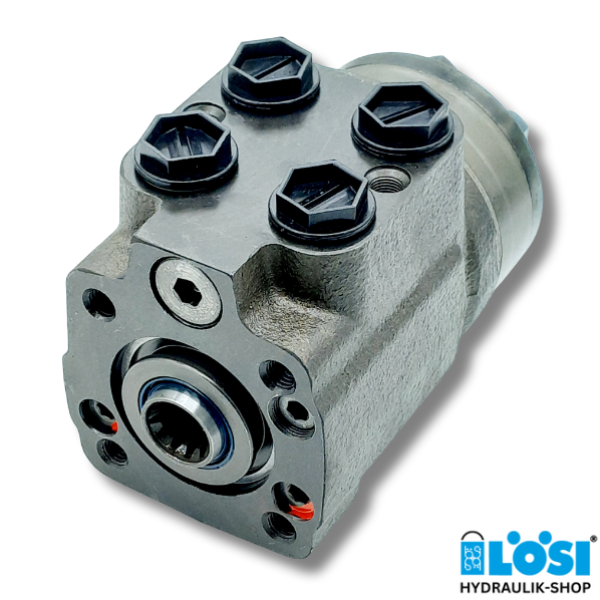

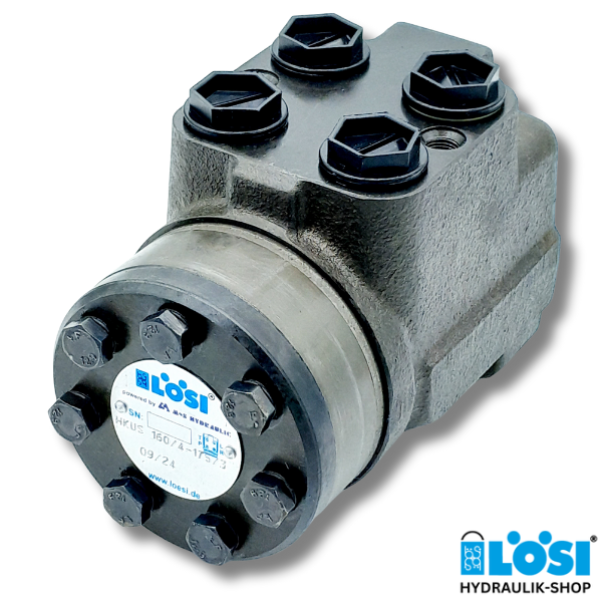

HKUS 125/4-175, LöSi Hydrostatic Steering Unit, Modular Installation
Specifications:
- Displacement [ccm/rev]: 123.8
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Non Load Reaction

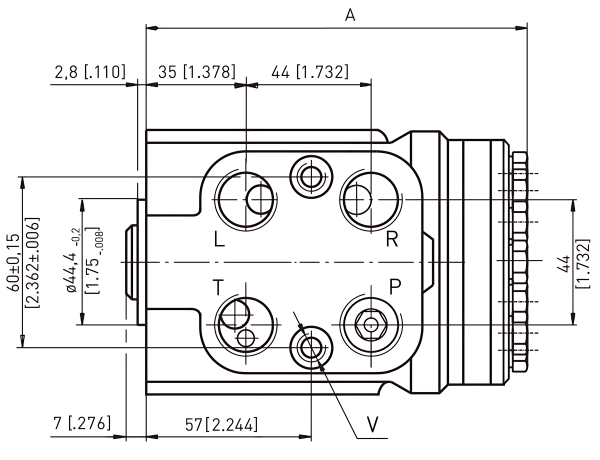

- Mounting Dimension [mm]: 142.2
- Modular installation
Technical Data:
- Rated flow: 13 l/min
- Rated pressure: 170 bar
- Relief valve pressure setting: 175 bar
- Shock valve pressure setting: 240 bar
- max. Continuous pressure in Line T: 25 bar
- max. Torque at servoamplifying: 3 Nm
- max. Torque without servoamplifying: 120 Nm
Download datasheet HKUS
Do you have any questions about our Steering Unit Type HKUS? Do you need support in choosing the right Steering Unit HKUS? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with What's App.
