HKUS 160/4-100 Hydrostatic Steering Unit
HKUS 160/4-100 Hydrostatic Steering Unit
HKUS 160/4-100 Hydrostatic Steering Unit

HKUS 160/4-100 Hydrostatic Steering Unit

ca. 1-3 days ca. 1-3 days (abroad may vary)
Price display for registered customers only

Add to wish list
Ask about product
Description

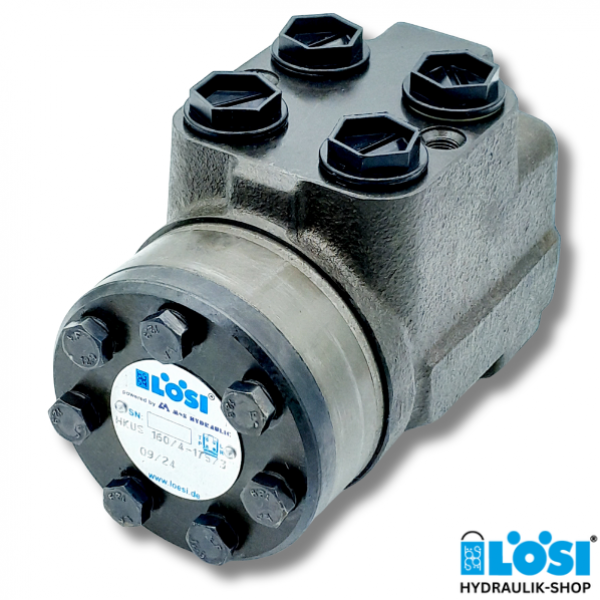

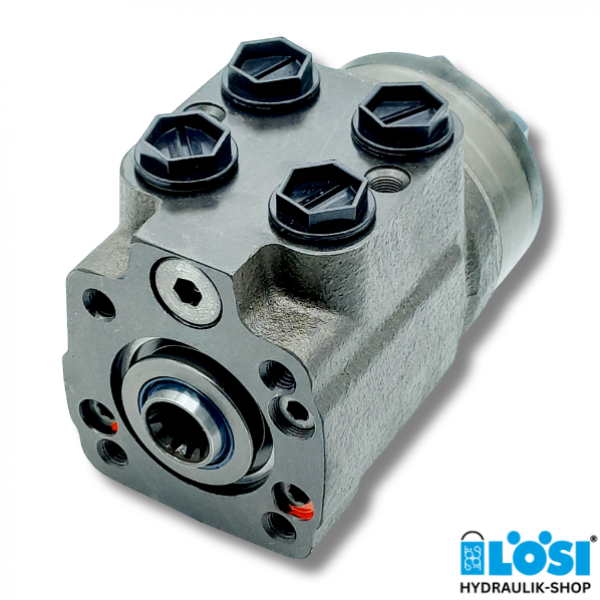

HKUS 160/4-100, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [ccm/rev]: 158.4
  • Ports: 4x G 1/2 inch BSPP
  • Version 4: Open Center - Non Load Reaction
  • Mounting Dimension [mm]: 146.8

Technical Data:

  • Rated flow: 16 l/min
  • Rated pressure: 170 bar
  • Relief valve pressure setting: 100 bar*
  • Shock valve pressure setting: 160 bar
  • max. Continuous pressure in Line T: 25 bar
  • max. Torque at servoamplifying: 3 Nm
  • max. Torque without servoamplifying: 120 Nm

*Please tell us the desired pressure setting of the pressure relief valve: from 80 bar to 170 bar.

Download datasheet HKUS

Do you have any questions about our Steering Unit Type HKUS? Do you need support in choosing the right Steering Unit HKUS? Then please contact us by phone on +49 631 352140, via our contact form , by email at  mailto:info@hydraulikshop-loesi.de or with What's App .
