Description

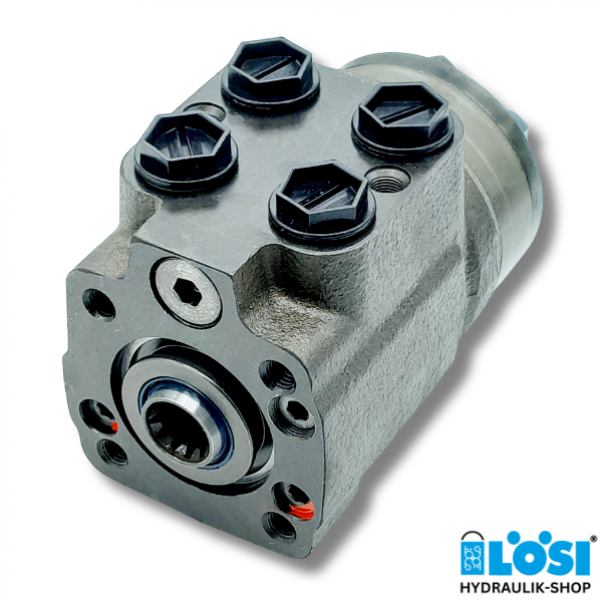

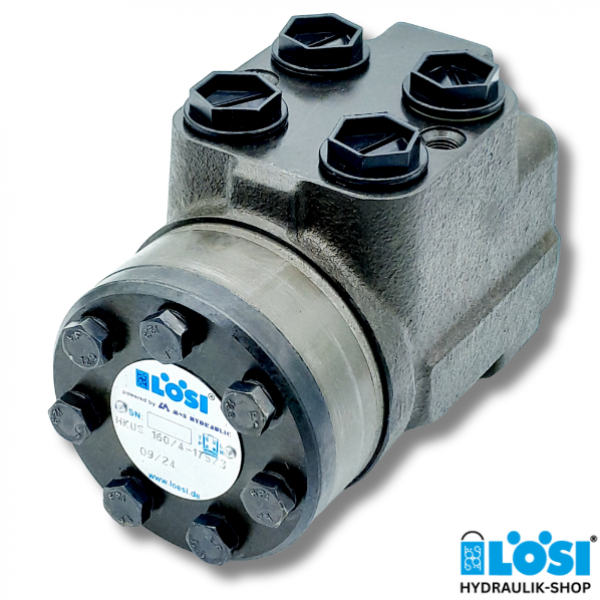

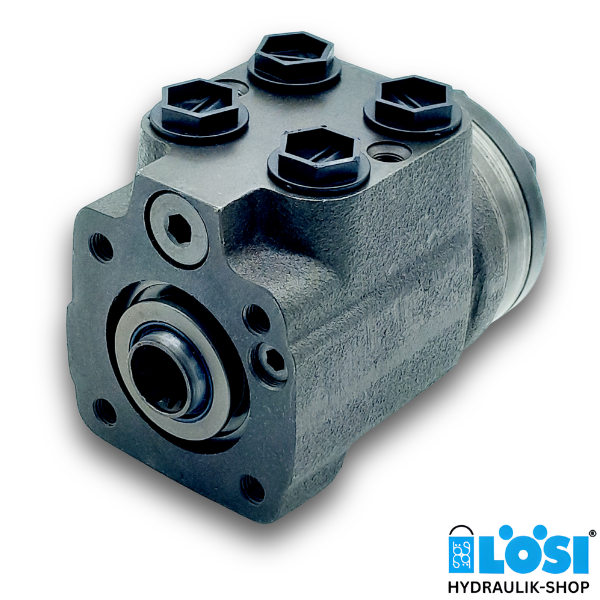

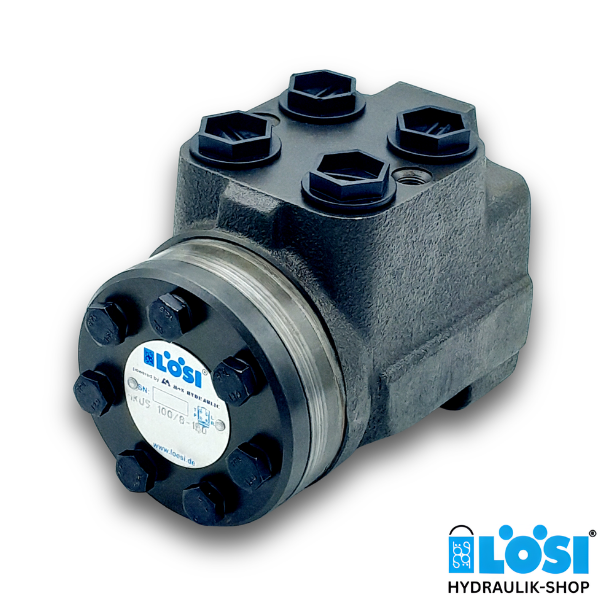

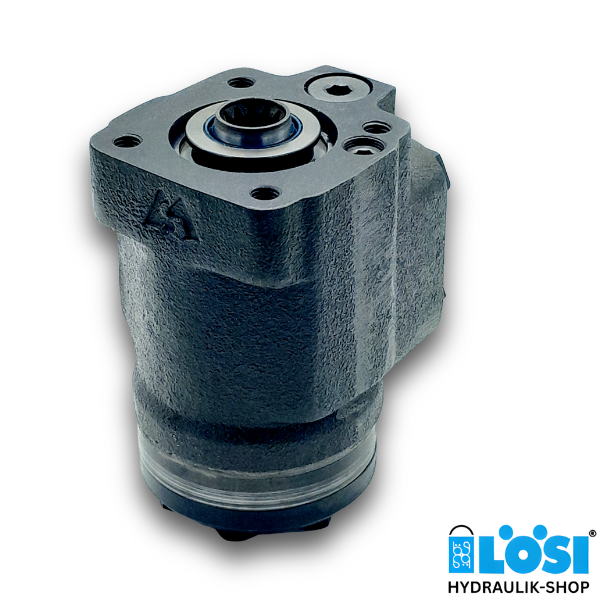

HKUS 160/8-150, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 158.4
  • Ports: 4x G 1/2 inch BSPP
  • Version 8: Open Center - Non Load reaction

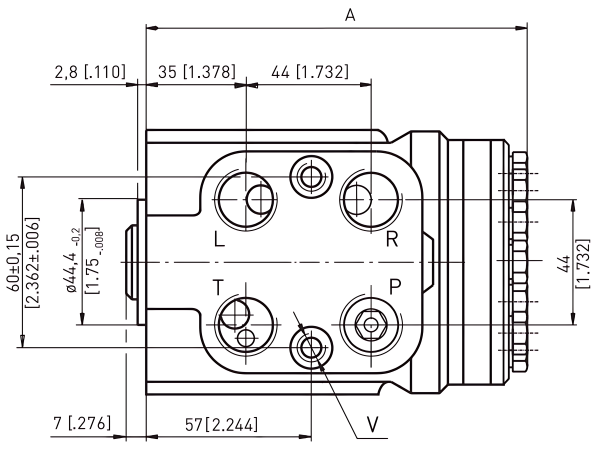

  • Mounting Dimension [mm]: 146.8

Technical Data:

  • Rated flow: 16 l/min
  • Rated pressure: 170 bar
  • Relief valve pressure setting: 150 bar*
  • No Shock valve
  • max. Continuous pressure in Line T: 25 bar
  • max. Torque at servo amplifying: 3 Nm
  • max. Torque without servo amplifying: 120 Nm

Download datasheet HKUS

*Please tell us the desired pressure setting of the pressure relief valve: from 80 bar to 170 bar.

Do you have any questions about our Steering Unit Type HKUS? Do you need support in choosing the right Steering Unit HKUS? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
