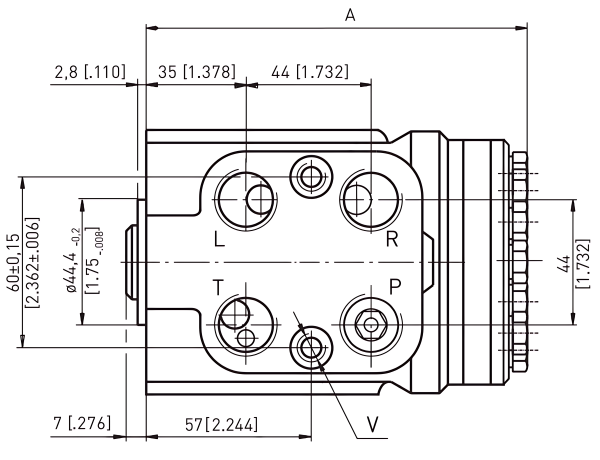

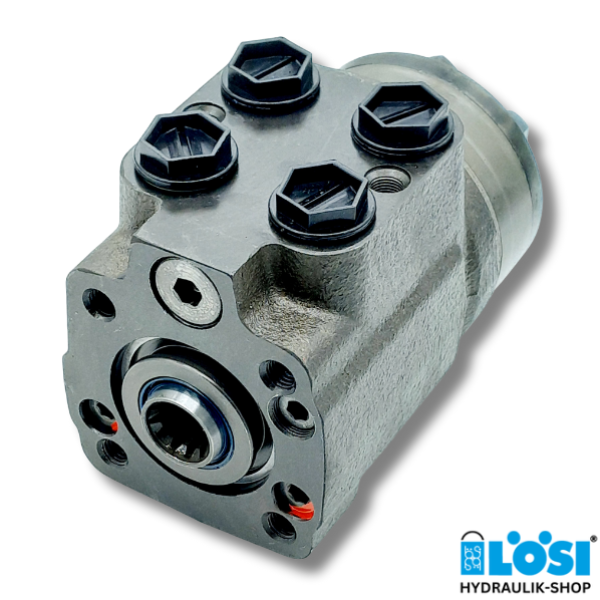

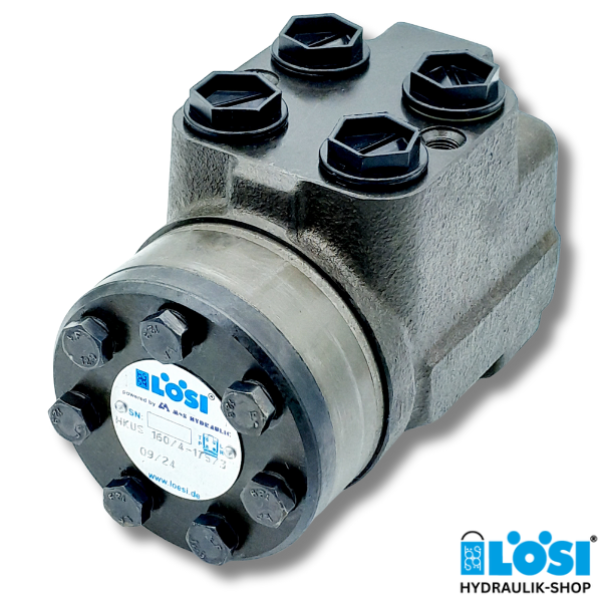

HKUS 250/4-100 H, LöSi Hydrostatic Steering Unit, Modular Installation, with High-Pressure Seal
Specifications:
- Displacement [cm³/rev]: 247.5
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Non Load Reaction
- Mounting Dimension [mm]: 158.8
- With high-pressure seal
- Modular installation
Technical Data:
- Rated flow: 25 l/min
- Rated pressure: 170 bar
- Relief valve pressure setting: 100 bar*
- Shock valve pressure setting: 160 bar
- Max. continuous pressure in Line T: 40 bar
- Max. torque with servo amplifying: 3 Nm
- Max. torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 170 bar.
Download datasheet HKUS
