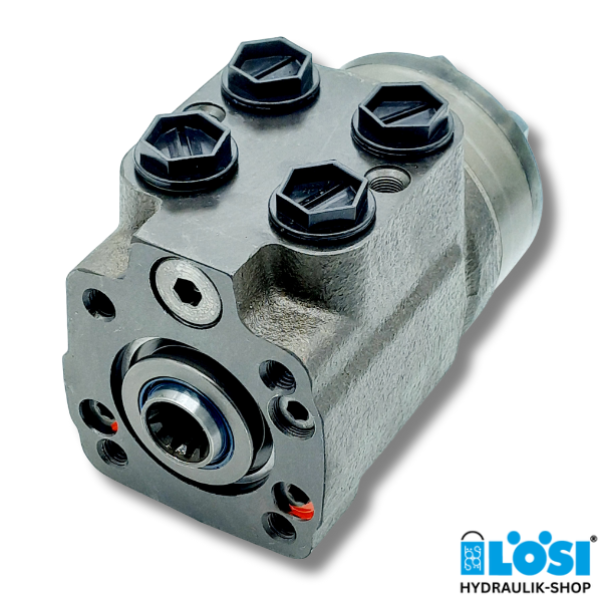

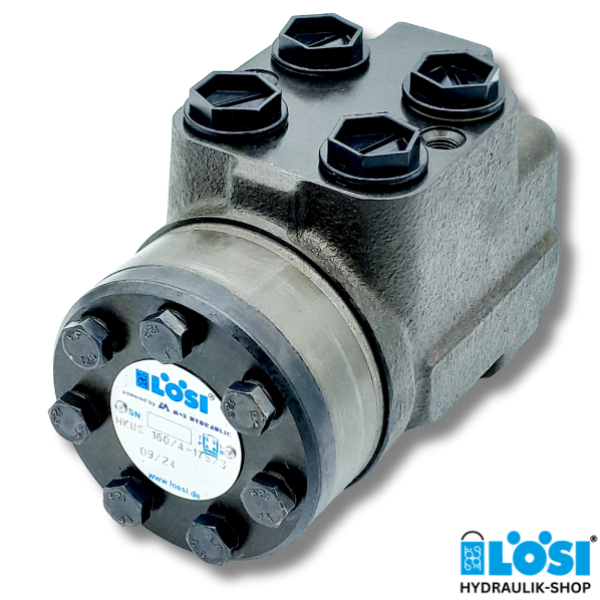

HKUS 400/4-125, LöSi Hydrostatic Steering Unit, Modular Installation
Specifications:
- Displacement [ccm/rev]: 396.0
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Non Load Reaction

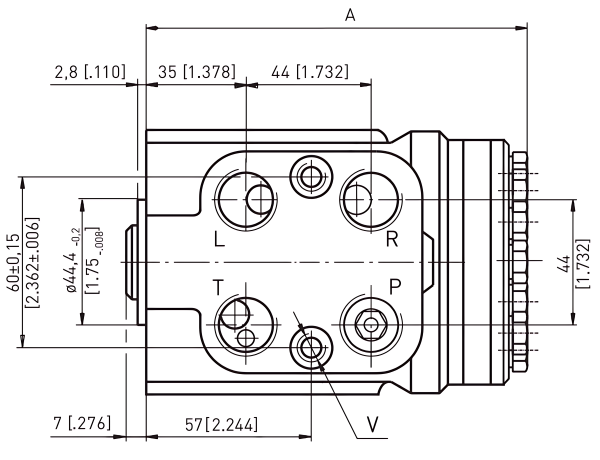

- Mounting Dimension [mm]: 178.8
- Modular installation
Technical Data:
- Rated flow: 40 l/min
- Rated pressure: 170 bar
- Relief valve pressure setting: 125 bar*
- Shock valve pressure setting: 180 bar
- max. Continuous pressure in Line T: 25 bar
- max. Torque at servoamplifying: 3 Nm
- max. Torque without servoamplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 170 bar.
Download datasheet HKUS
