Description

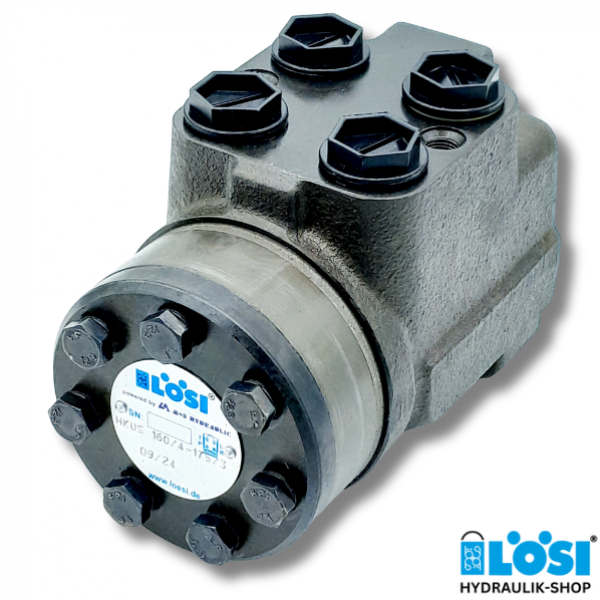

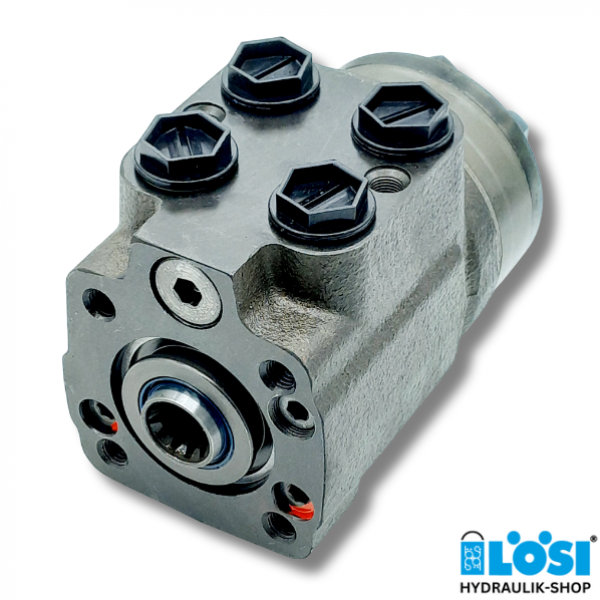

HKUS 400/4-150, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 396.0
  • Ports: 4x G 1/2 inch BSPP
  • Version 4: Open Center - Non Load Reaction
  • Mounting Dimension [mm]: 178.8

Technical Data:

  • Rated flow: 40 l/min
  • Rated pressure: 170 bar
  • Relief valve pressure setting: 150 bar*
  • Shock valve pressure setting: 200 bar
  • Max. continuous pressure in Line T: 25 bar
  • Max. torque with servo amplifying: 3 Nm
  • Max. torque without servo amplifying: 120 Nm

*Please tell us the desired pressure setting of the pressure relief valve: from 80 bar to 170 bar.

Download datasheet HKUS

Do you have any questions about our Steering Unit Type HKUS? Do you need support in choosing the right Steering Unit HKUS? Then please contact us by phone on +49 631 352140, via our contact form , by email at shop@loesi.de or with What's App .
