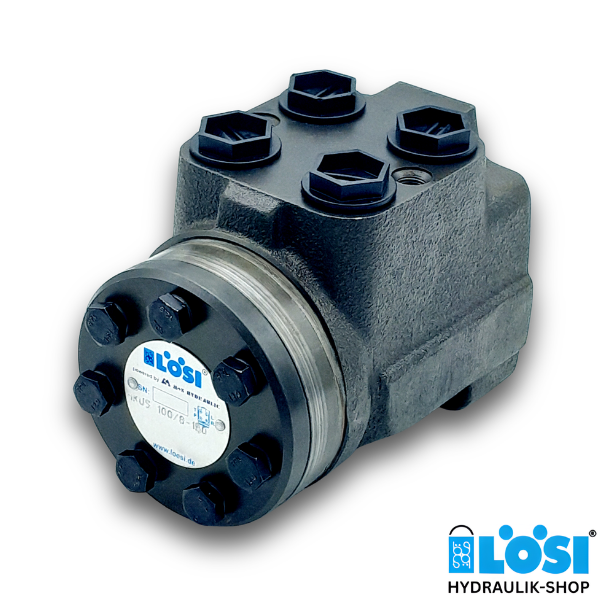

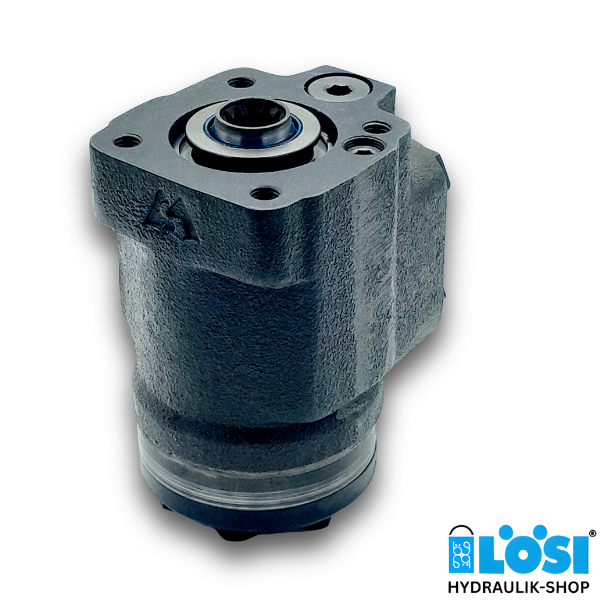

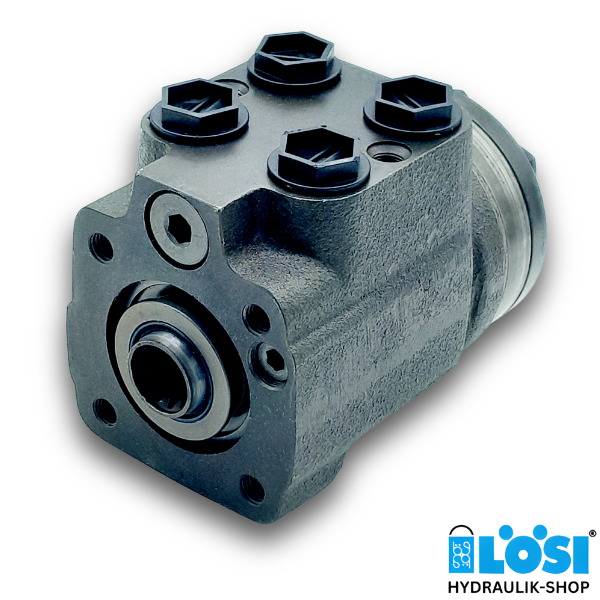

HKUS 50/3-80, LöSi Hydrostatic Steering Unit, Modular Installation
Specifications:
- Displacement [cm³/rev]: 49.5
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Load Reaction

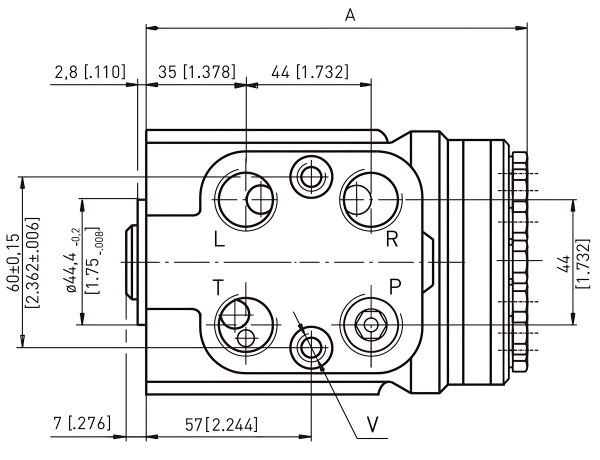

- Mounting Dimension [mm]: 132.2
- Modular installation
Technical Data:
- Rated flow: 5 l/min
- Rated pressure: 140 bar
- Relief valve pressure setting: 80 bar
- Without shock valve
- Max. continuous pressure in Line T: 25 bar
- Max. torque with servo amplifying: 3 Nm
- Max. torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 170 bar.
Download datasheet HKUS
