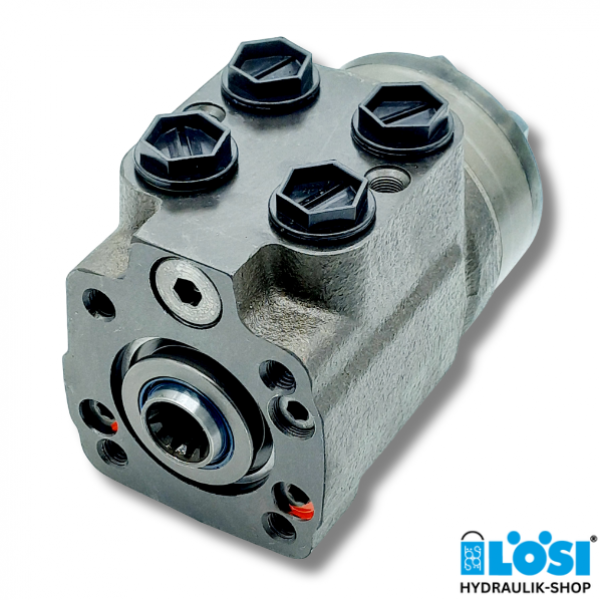

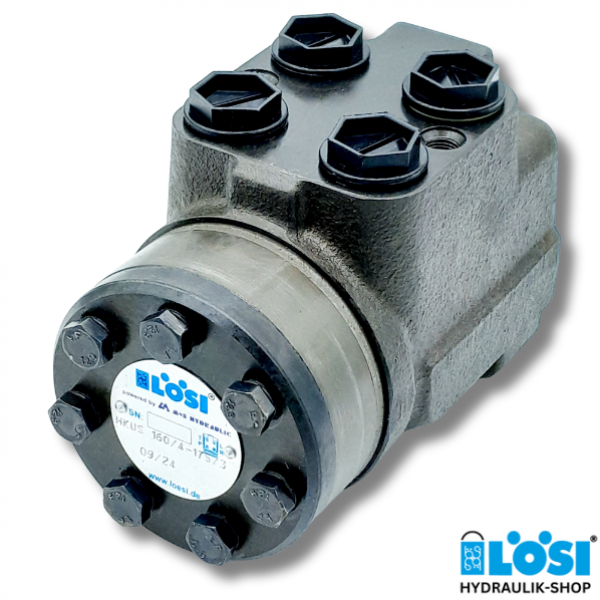

HKUS 63/4-150, LöSi Hydrostatic Steering Unit
Specifications:
- Displacement [cm³/rev]: 65.6
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Non Load Reaction
- Mounting Dimension [mm]: 133.9
Technical Data:
- Rated flow: 6 l/min
- Rated pressure: 170 bar
- Relief valve pressure setting: 150 bar*
- Shock valve pressure setting: 200 bar
- Max. Continuous pressure in Line T: 25 bar
- Max. Torque with servo amplifying: 3 Nm
- Max. Torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 170 bar.
Download datasheet HKUS
