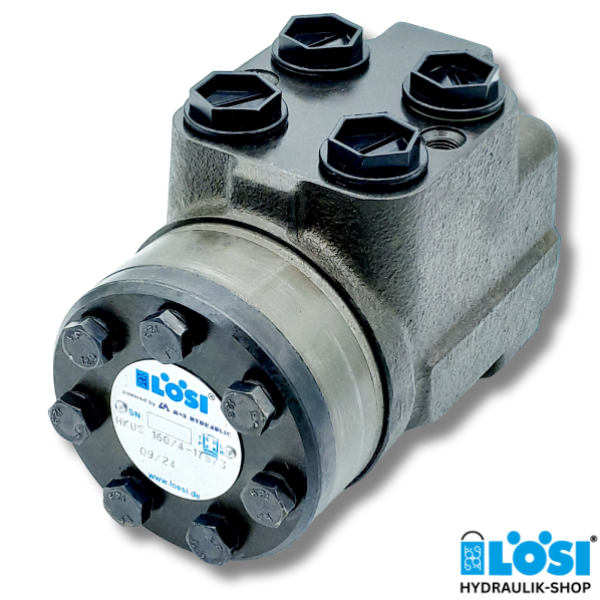

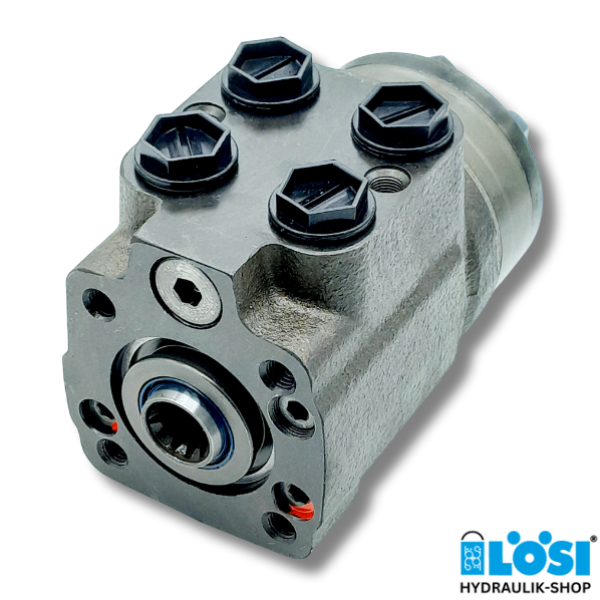

HKUS 63/4E-80, LöSi Hydrostatic Steering Unit, Modular Installation, with Electrical Signal
Specifications:
- Displacement [cm³/rev]: 65.6
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Non Load Reaction

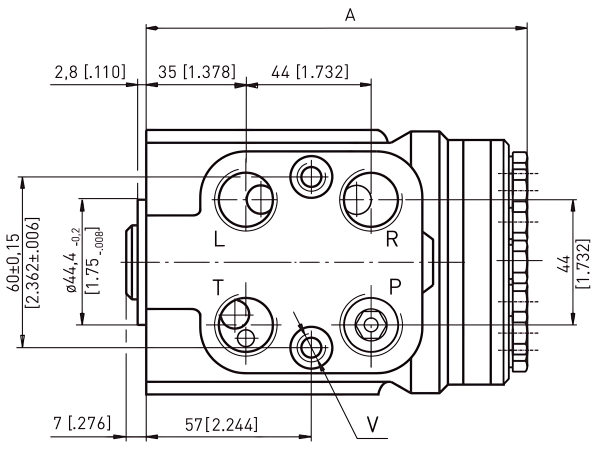

- Mounting Dimension [mm]: 133.9
- With electrical signal
- Modular installation
Technical Data:
- Rated flow: 6 l/min
- Rated pressure: 170 bar
- Relief valve pressure setting: 80 bar
- Shock valve pressure setting: 140 bar
- Max. continuous pressure in Line T: 25 bar
- Max. torque with servo amplifying: 3 Nm
- Max. torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 170 bar.
Download datasheet HKUS
