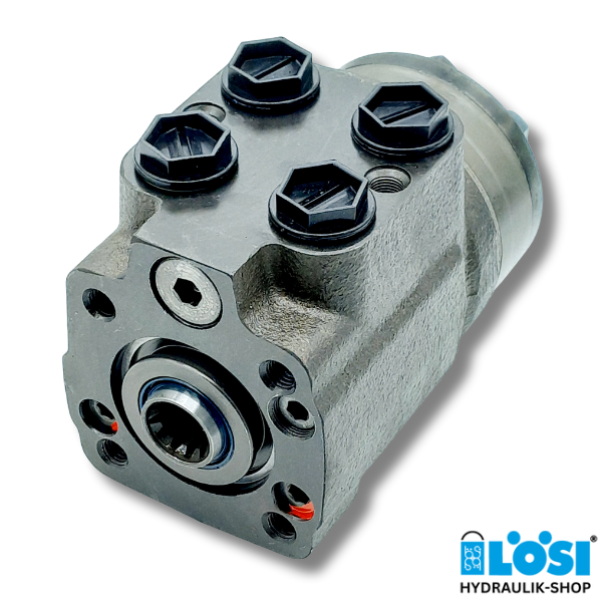

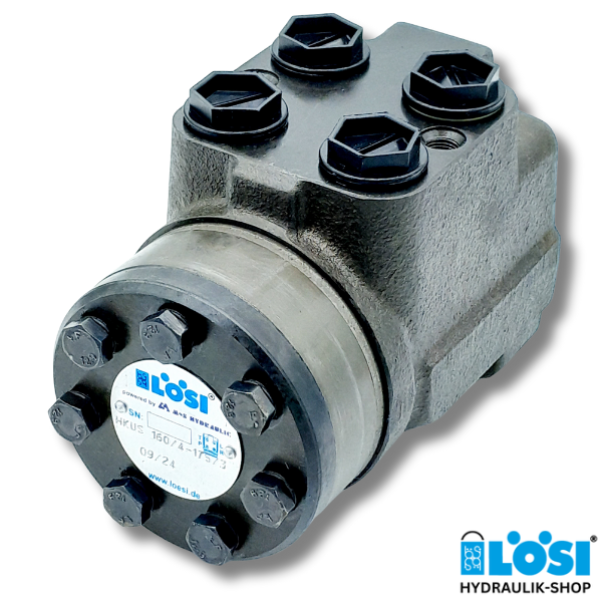

HKUS 80/4-90, LöSi Hydrostatic Steering Unit
Specifications:
- Displacement [ccm/rev]: 79.2
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Non Load Reaction

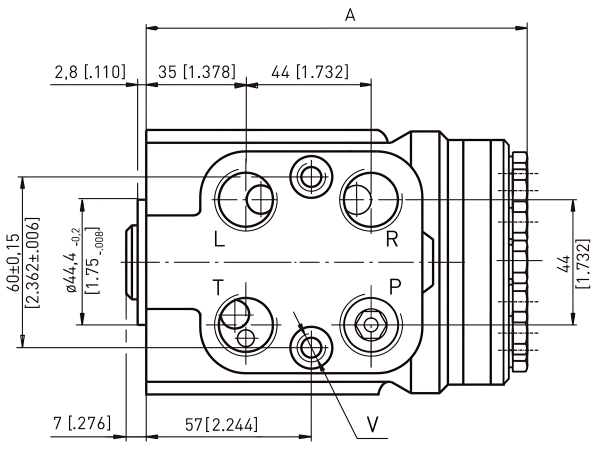

- Mounting Dimension [mm]: 136.2
Technical Data:
- Rated flow: 8 l/min
- Rated pressure: 170 bar
- Relief valve pressure setting: 90 bar
- Shock valve pressure setting: 140 bar
- max. Continues pressure in Line T: 25 bar
- max. Torque at servoamplifying: 3 Nm
- max. Torque without servoamplifying: 120 Nm
Download datasheet HKUS
Do you have any questions about our Steering Unit Type HKUS? Do you need support in choosing the right Steering Unit HKUS? Then please contact us by phone on +49 631 351240, via our contact form , by email at shop@loesi.de or with What's App .
