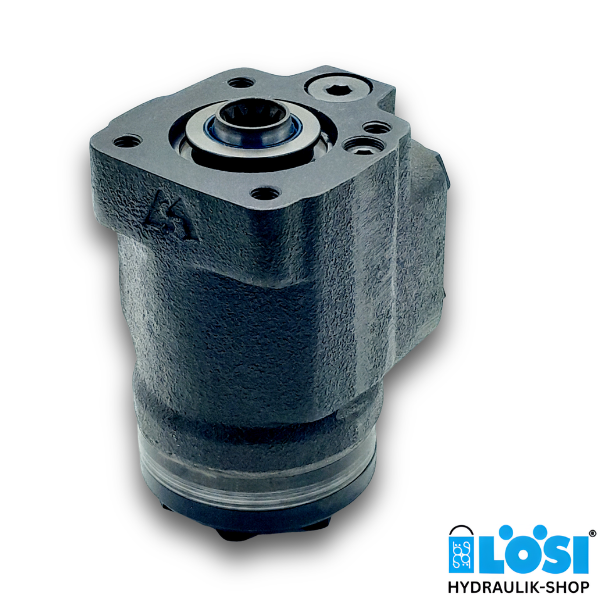

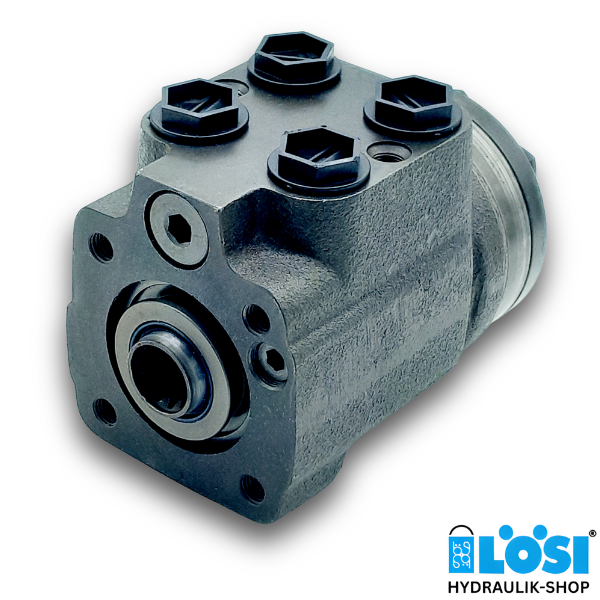

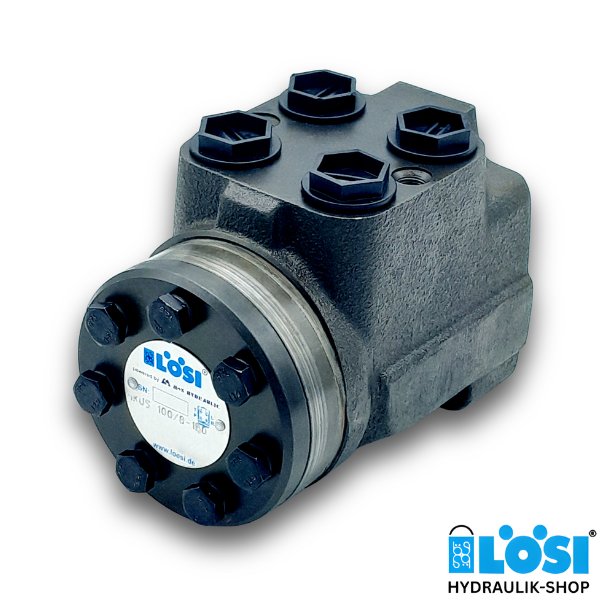

HKUS 80/8-85 A, LöSi Hydrostatic Steering Unit
Specifications:
- Displacement [cm³/rev]: 79.2
- Ports: 3/4-16 UNF O-Ring
- Version 8: Open Center - Non Load reaction

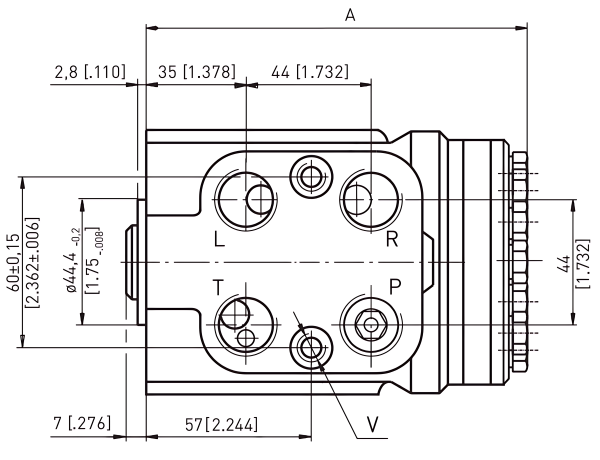

- Mounting Dimension [mm]: 136.2
Technical Data:
- Rated flow: 8 l/min
- Rated pressure: 170 bar
- Relief valve pressure setting: 85 bar*
- No Shock valve
- Max. Continuous pressure in Line T: 25 bar
- Max. Torque at servo amplifying: 3 Nm
- Max. Torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 170 bar.
Download datasheet HKUS
