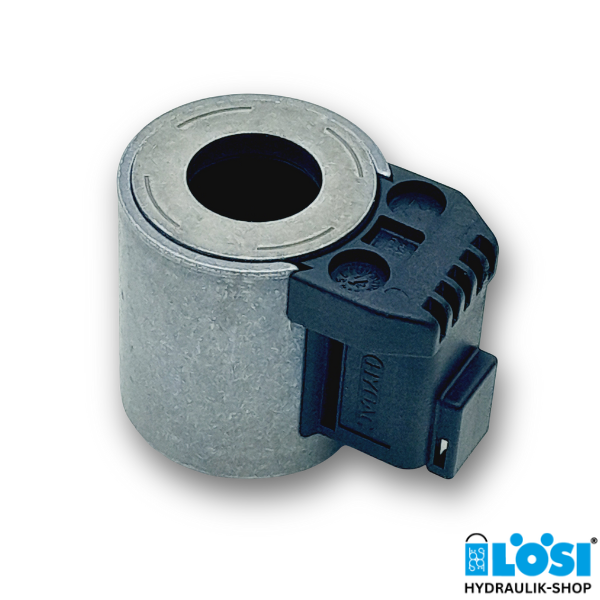

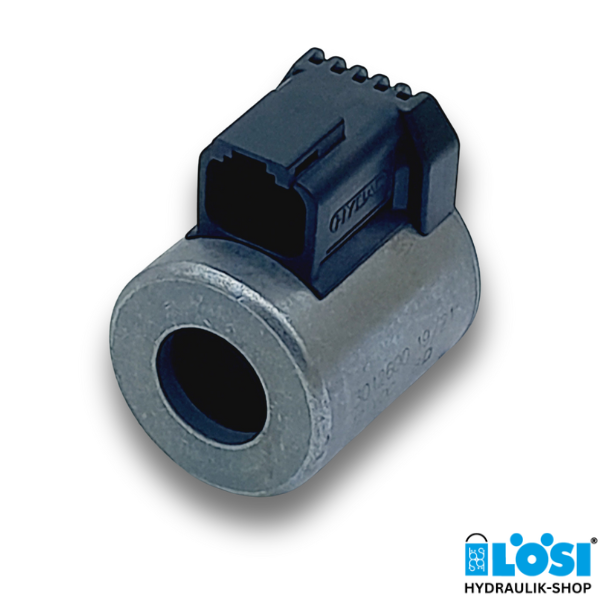

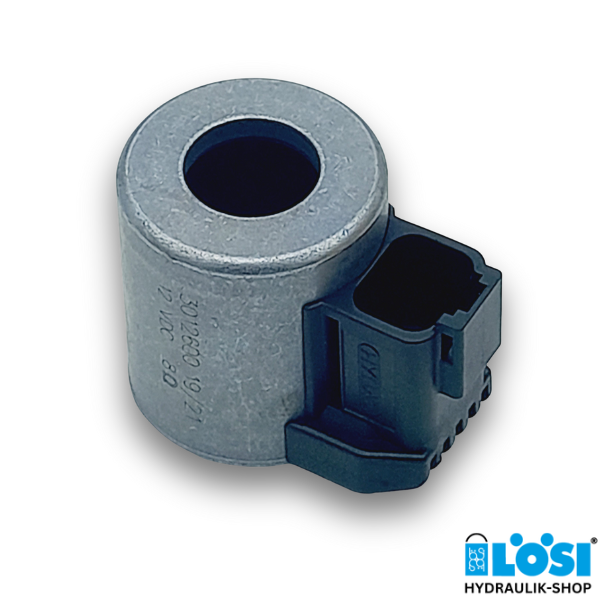

Hydac solenoid coil for directional seated valve/switching valve COIL 12DN 40-1836
Technical Data:
- DEUTSCH plug DT04-2P
- Voltage: 12V DC
- Power: 18W
- Connection thread 3/4-16 UNF
- Current Inom: 1.5A
- Resistance R20 [Ω]: 8 Ohm
- Diode: without
- Number of poles: 2
- Connection direction: axial
- Protection class: IP 67/ IP 69
- Application: Switching valves
- Length: 40 mm
- Diameter Ø: 36 mm
Download Datasheet
We have a large selection of solenoid coils in our shop/catalog. If your coil is not in stock, we are able to supply it at short notice. Simply get in touch with us.
Do you have questions about our solenoid coils? Do you need assistance with the right selection of your solenoid coil? Then please feel free to contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or via What's App.
