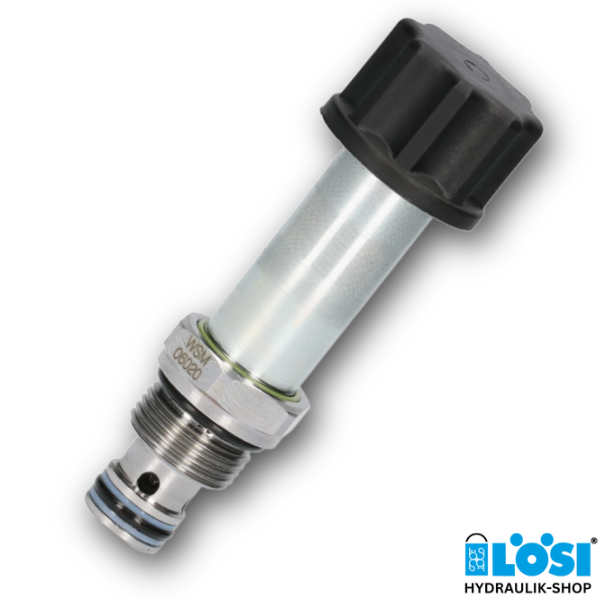

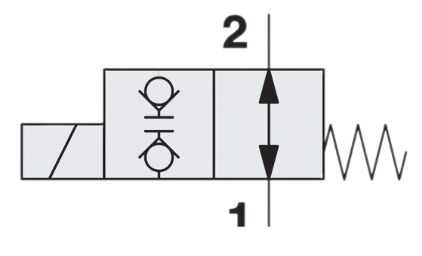

Hydac hydraulic 2/2 directional seat valve NG06, solenoid operated, direct operated, normally open, screw-in valve metric - 350 bar, WSM06020ZR-01M-C-N-0
Technical Data:
- Nominal size: 06
- Type of emergency manual operation: Screw emergency manual
- Variant: Standard
- Function: Magnetic
- Max. Volume flow: 40 l/min
- Volume flow range: 2 - 40 l/min
- Max. pressure: 350 bar
- Pressure range: 5 - 350 bar
- Plug type: without coil
- Type: Screw-in valve
- Control type: pilot operated
- Suitable solenoid coil version: 40-1836 also available in our store

Dounload Data Sheet
We have a large selection of directional seat valves in our shop/catalog. If your directional seat valve is not in stock, we are able to supply it at short notice. Simply get in touch with us.
Do you have questions about our directional seat valves? Do you need assistance with the right selection of your directional seat valve? Then please feel free to contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or via What's App.
