Hydraulic valve, 4/2 way valve, solenoid valve NG06-2B2-24VDC
Hydraulic valve, 4/2 Way Valve, solenoid valve NG06
General Data:
- 4/2-way valve, hydraulic valve
- Nominal size NG06
- Directly controlled
- For modular construction
- Max. working pressure: 315 bar
- Valve voltage: 24V DC
- Max. flow rate: 80 l/min
- Temperature range: -20 to 70°C
- Type: FW-02-2B2-D24-Z5L-N9

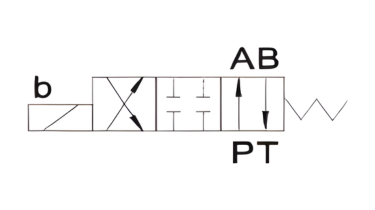

Circuit diagram:
