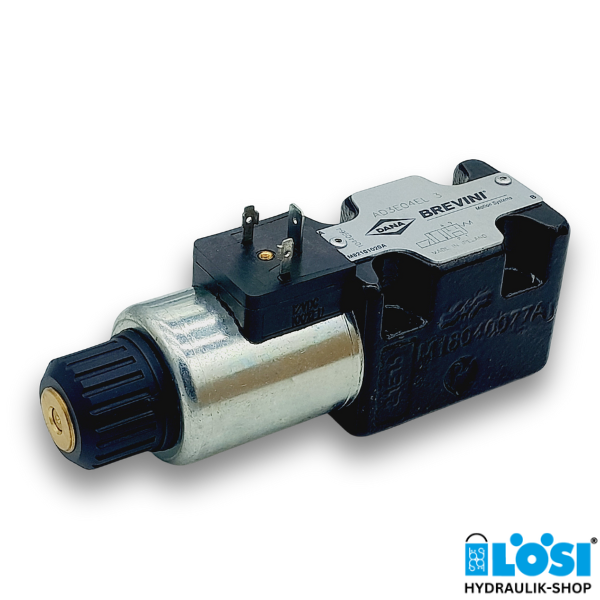

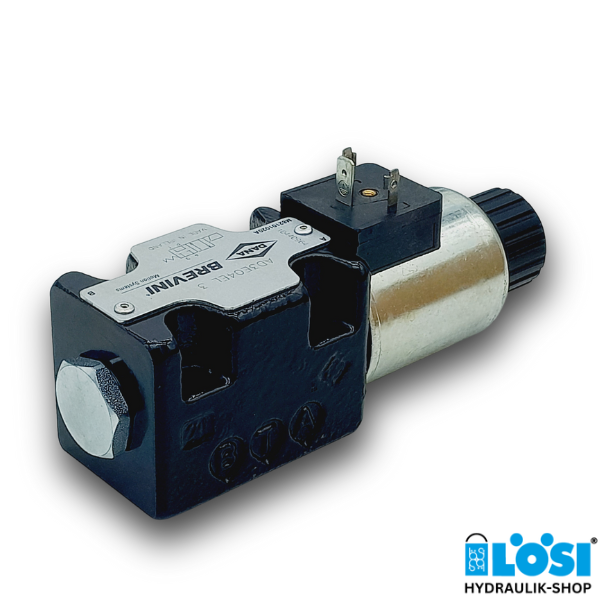

Brevini 4/2 Way Valve NG06 with Solenoid Coil, P-T Connected
Hydraulic valve, 4/2-way valve, solenoid valve NG06, initial position P-T connected, switched in parallel P-A B-T, type: AD3E04EL003
General Data:
- 4/2-way valve
- Max. volume f106550low: 80 l/min
- Max. working pressure P/A/B: 350 bar
- Max. working pressure (DC): 250 bar
- Max. working pressure (AC): 160 bar
- Valve voltage: 12V DC
Schematic Scheme:
