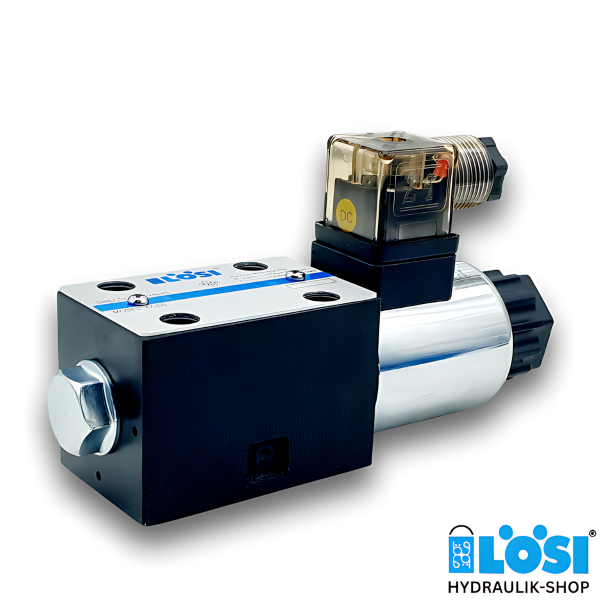

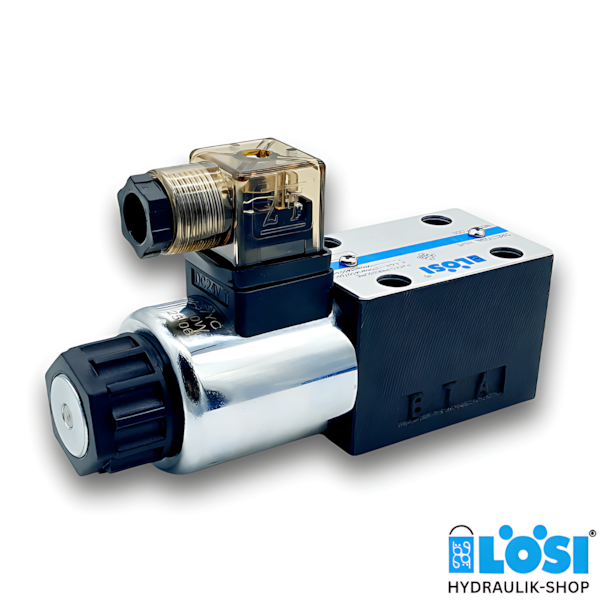

Hydraulic valve, 4/2-way valve, solenoid valve NG06-P and T connected-12V DC
Hydraulic valve, 4/2-way valve, solenoid valve NG06-P and T connected-12V DC
Hydraulic valve, 4/2-way valve, solenoid valve NG06-P and T connected-12V DC

Hydraulic valve, 4/2-way valve, solenoid valve NG06-P and T connected-12V DC

ca. 1-3 days ca. 1-3 days (abroad may vary)
57,12 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Hydraulic valve, 4/2-way valve, solenoid valve NG06-P-T connected-12V DC

General Data:

  • 4/2-way valve, P and T connected
  • Nominal size NG06
  • Directly controlled
  • For modular construction
  • Max. working pressure: 315 bar
  • Valve voltage: 12V DC
  • Max. flow rate: 80 l/min
  • Temperature range: -20 to 70°C

Circuit diagram:





Download Data Sheet NG06
