TMF Hydraulic Motor
The TMF hydraulic motor from LöSi® is part of the heavy-duty roller gerotor motor series and was specially developed for highly demanding industrial and mobile hydraulic applications. This series features valve control in the end cover, rollers in the planetary gear for improved start-up behaviour and a large displacement range. Whether for conveyor technology, construction machinery or heavy-duty hydraulic drive systems, the TMF hydraulic motor delivers reliable performance, long service life and robust design.
Catalogue download:
What is a TMF Hydraulic Motor?
The TMF hydraulic motor is an integral part of our Heavy-Duty Geroler Series. It was specially developed to bridge the gap between standard motors and extreme heavy-duty drives.
Technically, the TMF sets standards: It combines a robust planetary gear set with advanced valve control in the end cap. This design mechanically separates the hydraulic control from the output shaft, which increases precision and minimizes wear.
Advantages of the TMF Series
Why is the TMF so valuable for demanding hydraulic systems? The key lies in friction minimization. Thanks to Geroler technology (additional rollers in the gear set), classic sliding friction is avoided.
This results in tangible benefits:
- Improved Start-up Behavior: High breakaway torque even under load.
- Long Service Life: The separation of valve and shaft protects the internal components.
- Precise Control: The separate cardan shaft to the end cap ensures exact filling and emptying times of the chambers.
Typical Areas of Application for the TMF Hydraulic Motor
The TMF is not a motor for light tasks. It is at home where dust, dirt, and high loads are part of everyday life:
- Mining & Mine Technology: Reliable drive underground.
- Port Hydraulic Systems: Winches and cranes in maritime environments.
- Construction Machinery: Travel drives for mobile machinery.
- Conveyor Technology: Heavy-duty conveyor belts.
Variants, Selection & Technical Data
The TMF series covers a wide performance spectrum. A prime example of the performance capability is the model TMF 315 HD.

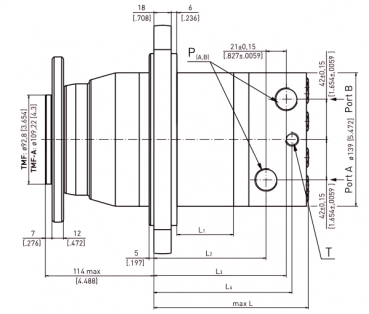

Key Technical Data (Example TMF 315 HD):
- Displacement: approx. 326.3 cm³/rev.
- Torque: Powerful 1,160 Nm (max.).
- Pressure Range: Inlet pressure up to 270 bar.
- Speed: Up to 380 rpm for dynamic processes.
During configuration, we support you in finding the matching flange design (often 4-bolt) and the right connection type for your piping.
Select & Order TMF Hydraulic Motor Now
Rely on proven heavy-duty quality. In our webshop, you will find the TMF hydraulic motor in numerous variants. Benefit from our fast availability to avoid downtime in your system.
Select your configuration now. Our technical team will be happy to advise you on questions regarding pressure and assembly. Inform yourself now and order directly online!
