XY 85-10/1 Steering unit

XY 85-10/1, LöSi Hydrostatic Steering Unit

Specifications:

• Displacement [cm³/rev]: 84
• Ports: 4 x M18x1.5
• Mounting holes: 2x M8

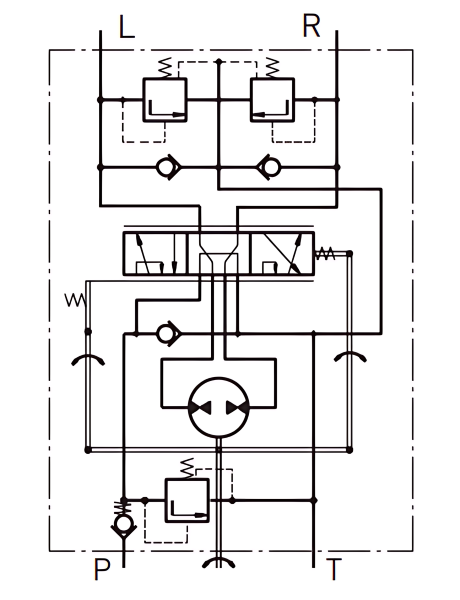

• Version 5: Open Center-Load Reaction version
• Mounting Dimension [mm]: 256.3

Technical Data:

• Rated flow: 9 l/min
• Rated pressure: 150 bar
• Relief valve pressure setting [bar]: 80,100,125,150
• Shock valve pressure setting: 200 bar
• max. Continuous pressure in Line T: 20 bar
• max. Torque at servoamplifying: 3.5 Nm
• max. Torque without servoamplifying: 120 Nm

Download Data Sheet XY
