Description

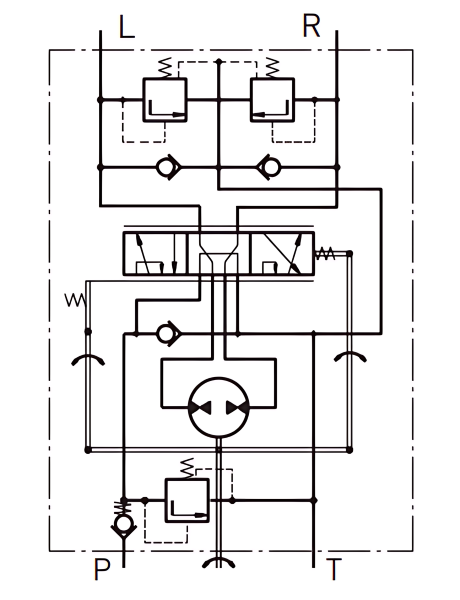

XY 85-15/1, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 84
  • Ports: 2 x M8, 14 [.81]
  • Version 5: Open Center-Load Reaction version
  • Mounting Dimension [mm]: 136.3

Technical Data:

  • Rated flow: 9 l/min
  • Rated pressure: 150 bar
  • Relief valve pressure setting: 150
  • Shock valve pressure setting: 200 bar
  • max. Continuous pressure in Line T: 20 bar
  • max. Torque at servo amplifying: 3.5 Nm
  • max. Torque without servo amplifying: 120 Nm

Download Data Sheet XY

Do you have any questions about our Steering Unit Type XY? Do you need support in choosing the right Steering Unit XY? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
