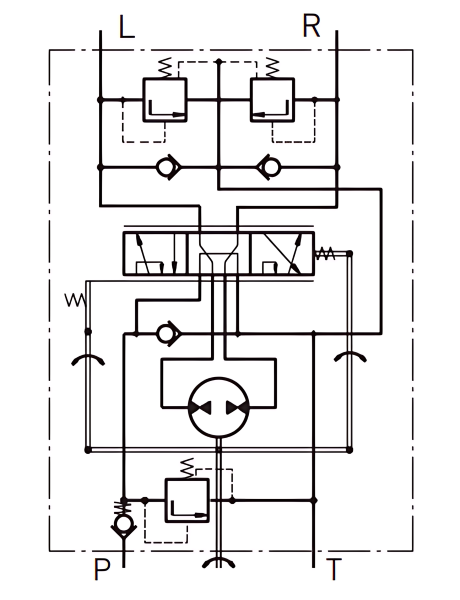

XY 120-15/1, LöSi Hydrostatic Steering Unit
Specifications:
- Displacement [cm³/rev]: 120
- Ports: 2 x M8, 14 [.81]
- Version 5: Open Center-Load Reaction version
- Mounting Dimension [mm]: 136.3
Technical Data:
- Rated flow: 15 l/min
- Rated pressure: 150 bar
- Relief valve pressure setting: 150 bar
- Shock valve pressure setting: 200 bar
- Max. continuous pressure in Line T: 20 bar
- Max. torque at servo-amplifying: 3.5 Nm
- Max. torque without servo-amplifying: 120 Nm
Download Data Sheet XY
