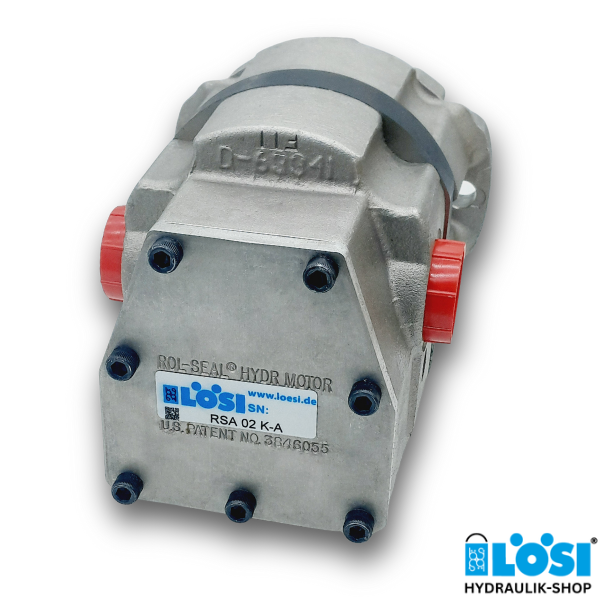

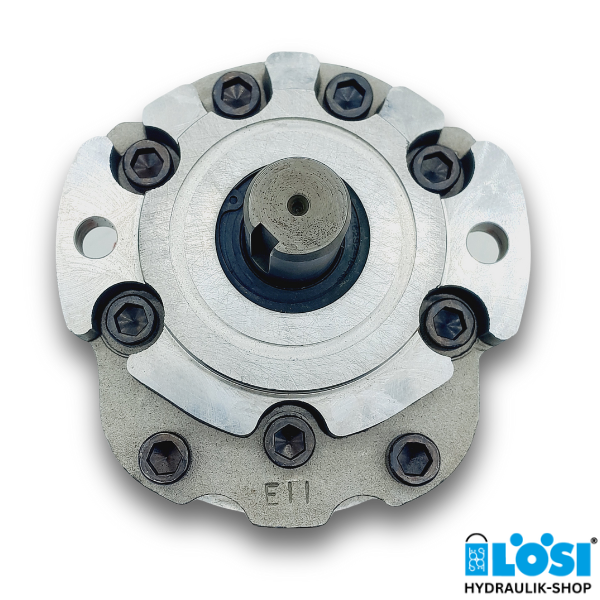

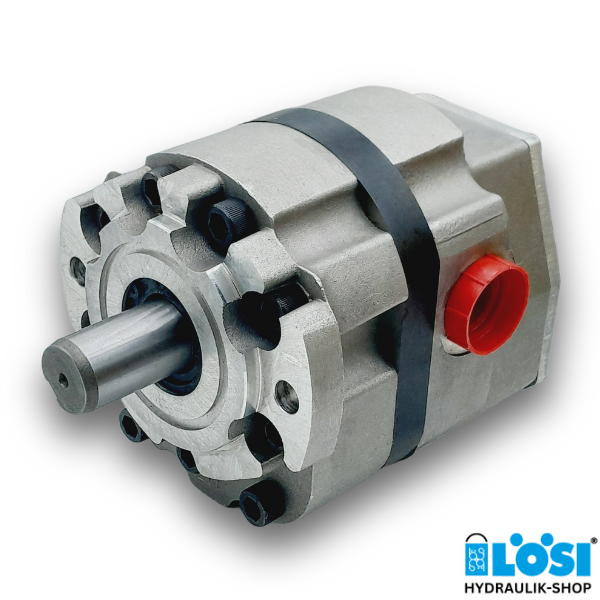

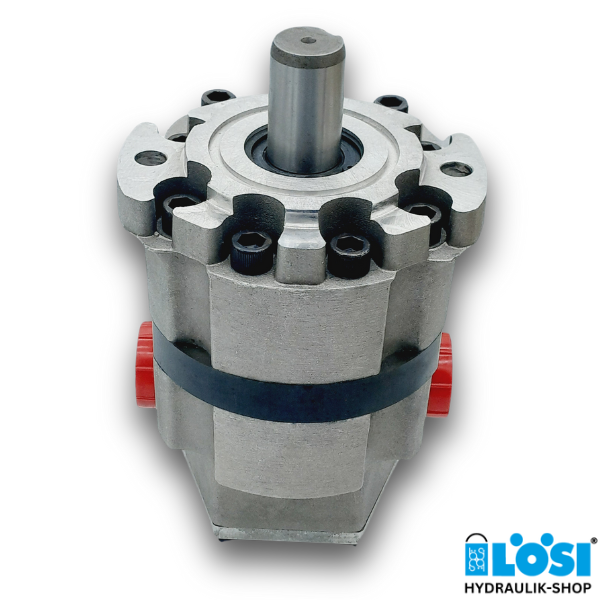

Hydraulic Rotary Piston Motor Rolling Seal, SAE A, 2BØ11, V=33cm3/rev, Shaft Ø25.4
Specifications:
- Displacement [cm³/rev]: 32.8
- Side connections A+B: 1-1/16-12 UN
- Leakage oil connection: 9/16-18 UNF
- Shaft: cylindrical Ø 25.4 mm with feather key (6.35 mm)
- 2-hole flange (hole spacing: 101 mm)
Technical Data (for continuous use):
- Max. speed: 2000 rev/min
- Minimum speed: 9 rev/min
- Max. torque: 90 Nm
- Max. oil flow: 68 l/min
- Max. inlet pressure: 172 bar
Download datasheet RSA 02
We have a large selection of motors in our shop/catalog. If the motor you require is not included in our range, we can supply many models at short notice. Just get in touch with us.
Do you have any questions about our rotary piston motors? Do you need support in choosing the right rotary piston motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
