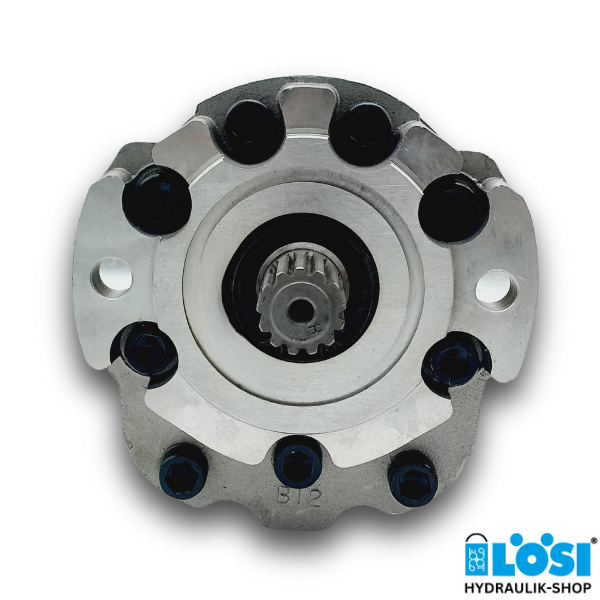

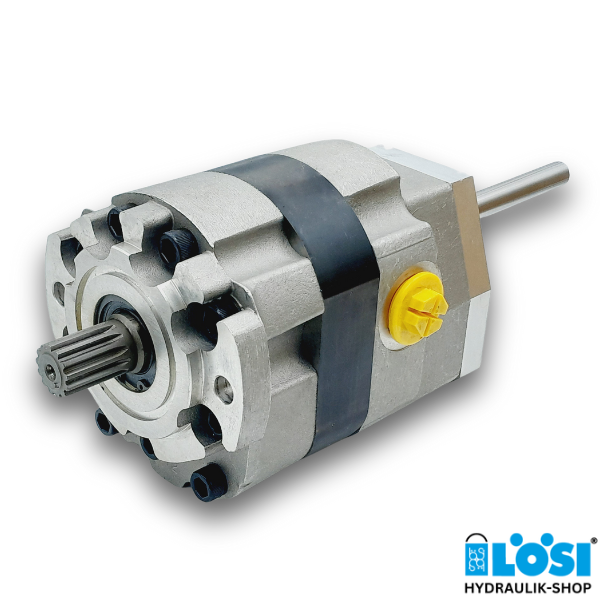

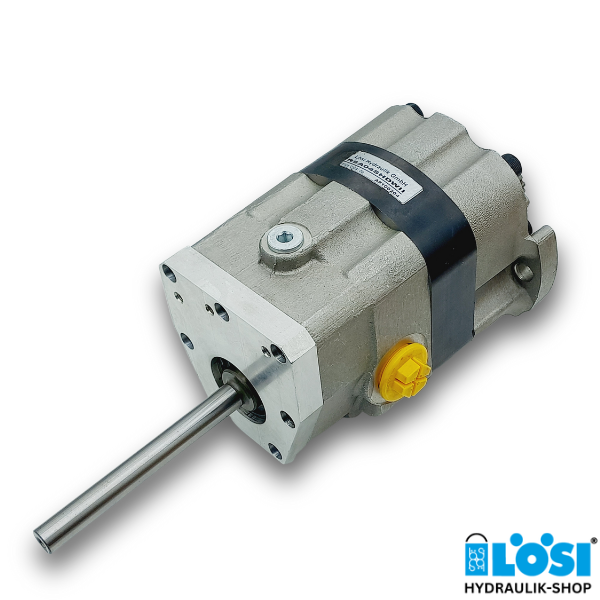

Hydraulic Rotary Piston Motor Rolling Seal, SAE A, 2BØ11, V= 65.2 cm³/rev, Splined Shaft Z=13 + 2nd Shaft Ø14x118mm
Specifications:
- Displacement [cm³/rev]: 65.2
- Side connections A+B: 1-1/16-12 UN
- Leakage oil connection: 9/16-18 UNF
- Shaft: 13 Tooth 16/32 Pitch, Spline Ø 22,2
- Rear shaft: Ø14x118mm
- 2-hole flange (hole spacing: 101 mm)
Technical Data (for continuous use):
- Max. speed: 1000 rev/min
- Minimum speed: 2 rev/min
- Max. torque: 144 Nm
- Max. oil flow: 67 l/min
- Max. inlet pressure: 138 bar
Download datasheet RSA 04S
We have a large selection of motors in our shop/catalog. If the motor you require is not included in our range, we can supply many models at short notice. Just get in touch with us.
Do you have any questions about our rotary piston motors? Do you need support in choosing the right rotary piston motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
