Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Preview: Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Preview: Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Mobile Preview: Angled flange 90°, G3/8'', PCD 30mm, 4-hole
Mobile Preview: Angled flange 90°, G3/8'', PCD 30mm, 4-hole

Angled flange 90°, G3/8'', PCD 30mm, 4-hole

ca. 1-3 days ca. 1-3 days (abroad may vary)
6,88 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

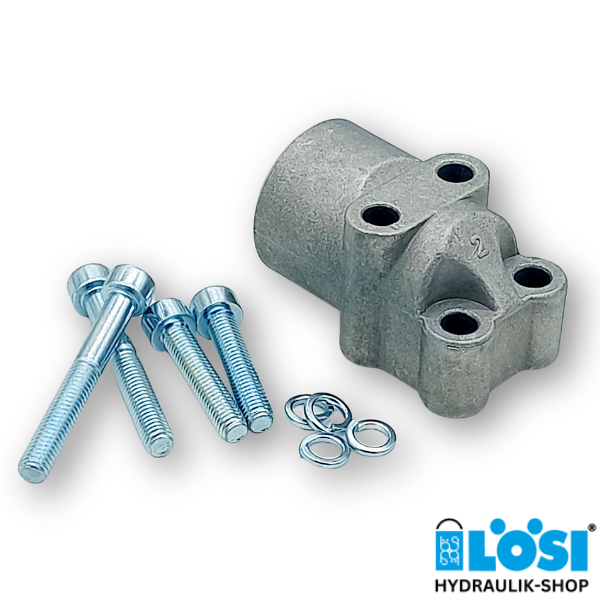

Connection angle flange 90°, PCD 30mm, 3/8 inch screw-in thread, 180 bar, aluminum, with O-ring and mounting screws

Technical Data:

  • Design: 4-hole flange 90°
  • BSP thread: G3/8”
  • Bolt circle: 30 mm
  • Max. Pressure [bar]: 180
  • Material: Aluminum
  • Mounting screws: 2x M6x30; 2xM6x45
  • 4x spring washer
  • 1x O-ring NBR

Ref.no.: RB038-30-M
Other sizes available on request.

Do you have questions about our angle flanges? Do you need assistance in selecting the right angle flange? Please contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or via WhatsApp.



Customer reviews

Unfortunately there are no reviews yet. Be the first who rates this product.

Your opinion

This product is compatible with (for example):

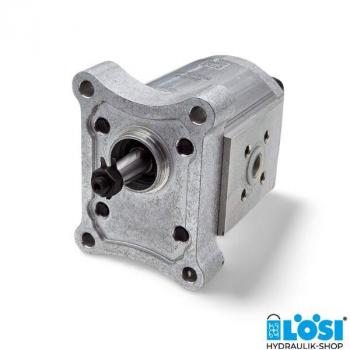

Gear pump CAP 11200052
