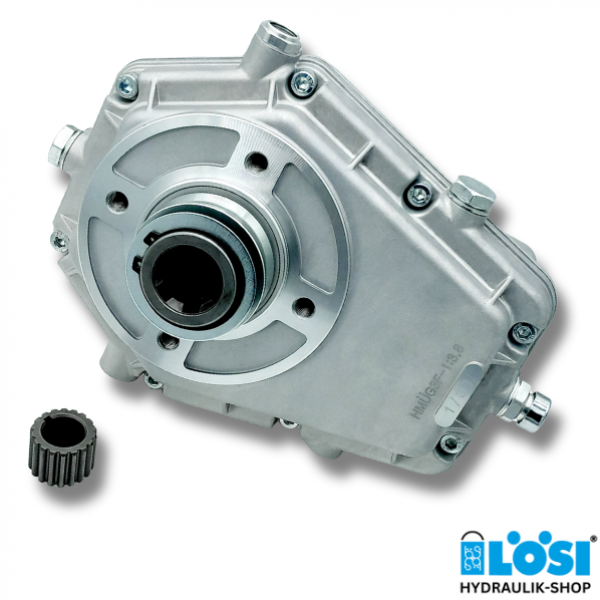

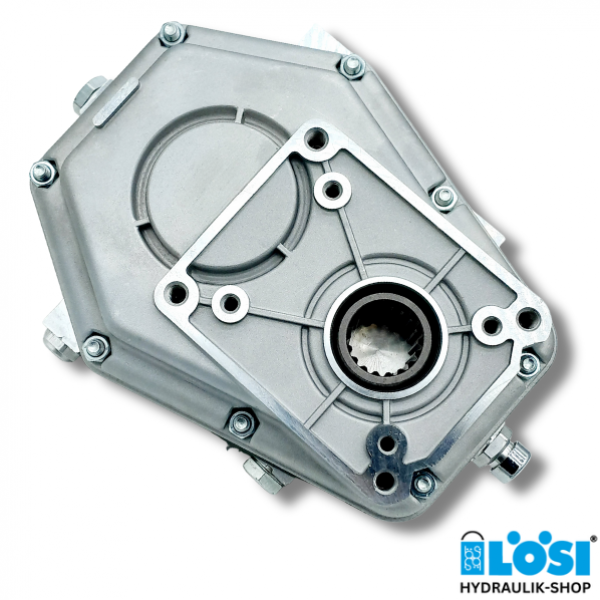

Hydraulic Transmission Gearbox/PTO Gearbox Group 3 1:3,8 71004-6

Shipping time:
ca. 1-3 days ca. 1-3 days (abroad may vary)
175,86 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Hydraulic Transmission Gearbox/PTO Gearbox Group 3 1:3,8 71004-6

Specifications:

  • Transmission gearbox group 3
  • Series: 71004-6
  • Shaft version: hollow shaft 1 3/8; DIN 9611 A with snap ring
  • Transmittion ratio: 1:3,8
  • Flange: European standard group 2 and 3

Technical Data:

  • Input Speed (rev/min): 540
  • Power (kW): 20
  • Weight (kg): 9.7

Download datasheet transmission gearbox

Do you have any questions about our transmission gearbox? Do you need support in choosing the right transmission gearbox? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
