Transmission/PTO gearbox group 3 1:3,8 70001-6
Transmission/PTO gearbox group 3 1:3,8 70001-6
Transmission/PTO gearbox group 3 1:3,8 70001-6
Transmission/PTO gearbox group 3 1:3,8 70001-6
Preview: Transmission/PTO gearbox group 3 1:3,8 70001-6
Preview: Transmission/PTO gearbox group 3 1:3,8 70001-6
Preview: Transmission/PTO gearbox group 3 1:3,8 70001-6
Preview: Transmission/PTO gearbox group 3 1:3,8 70001-6
Transmission/PTO gearbox group 3 1:3,8 70001-6
Transmission/PTO gearbox group 3 1:3,8 70001-6
Transmission/PTO gearbox group 3 1:3,8 70001-6
Transmission/PTO gearbox group 3 1:3,8 70001-6
Transmission/PTO gearbox group 3 1:3,8 70001-6
Mobile Preview: Transmission/PTO gearbox group 3 1:3,8 70001-6
Mobile Preview: Transmission/PTO gearbox group 3 1:3,8 70001-6
Mobile Preview: Transmission/PTO gearbox group 3 1:3,8 70001-6
Mobile Preview: Transmission/PTO gearbox group 3 1:3,8 70001-6

Transmission/PTO gearbox group 3 1:3,8 70001-6

Shipping time:
ca. 1-3 days ca. 1-3 days (abroad may vary)
165,27 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

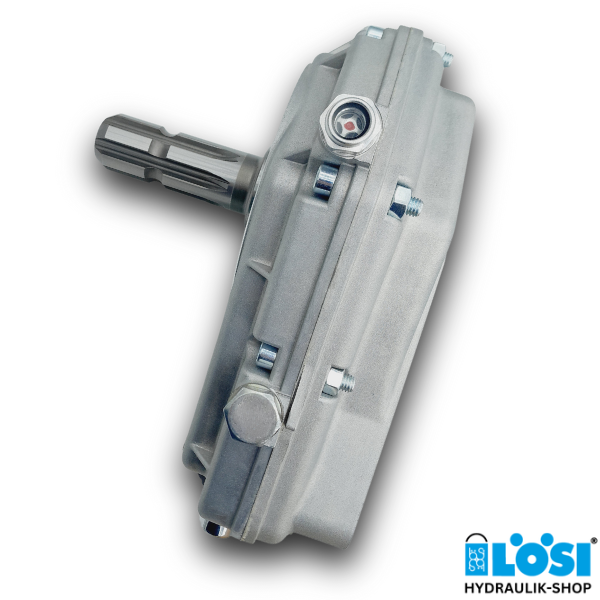

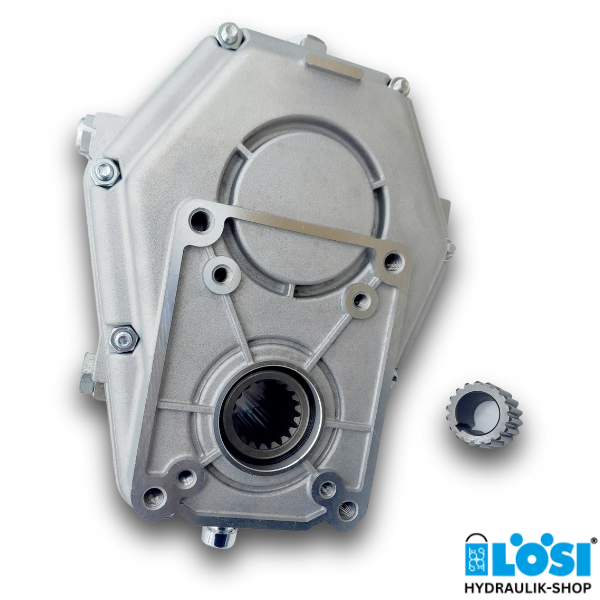

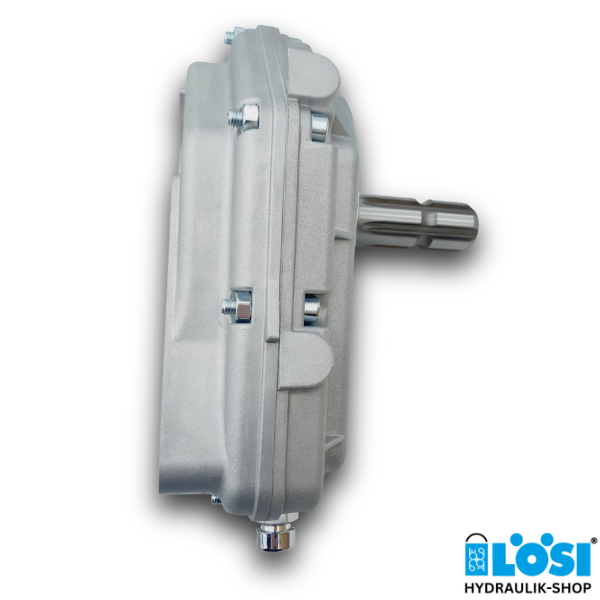

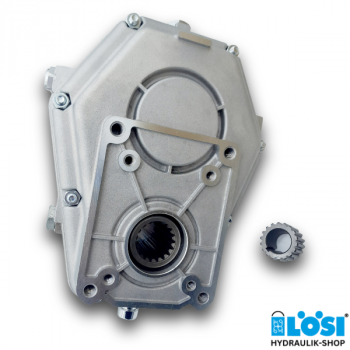

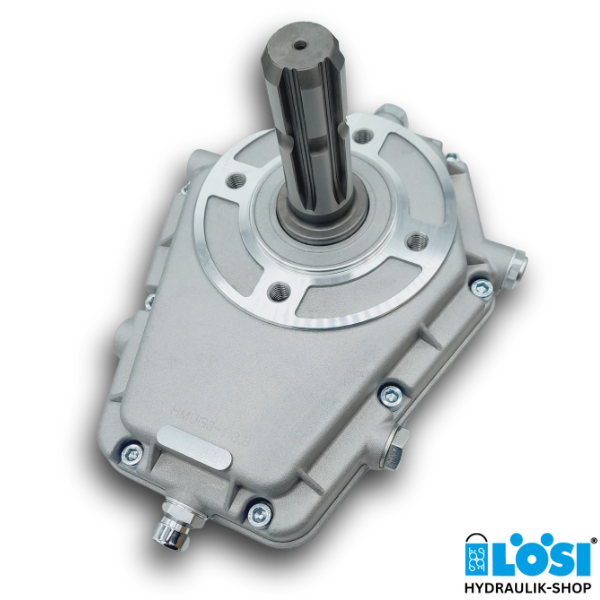

Transmission/PTO gearbox group 3 1:3,8 70001-6

Specifications:

  • Transmission gearbox group 3
  • Series: 70001-6
  • Shaft version: PTO shaft, male 1 3/8" DIN 9611
  • Transmittion ratio: 1:3,8
  • Flange: European standard group 2 and 3

Technical Data:

  • Input Speed (rev/min): 540
  • Power (kW): 20
  • Weight (kg): 9.7

Download datasheet transmission gearbox

Do you have any questions about our transmission gearbox? Do you need support in choosing the right transmission gearbox? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.






Customer reviews

Unfortunately there are no reviews yet. Be the first who rates this product.

Your opinion

This product is compatible with (for example):

Gear pump CAP 31200292HF
Gear pump CAP 31200292HF
Gear pump, group 3, right hand., 20ccm/rev., tapered shaft 1:8, DIN version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø19 mm, BCDØ40 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31225292HF
Gear pump CAP 31225292HF
Gear pump, group 3, right hand., 22,5 ccm/rev., tapered shaft 1:8, DIN version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø19 mm, BCDØ40 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31250292HF
Gear pump CAP 31250292HF
Gear pump, group 3, right hand., 25 ccm/rev., tapered shaft 1:8, DIN version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø19 mm, BCDØ40 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31280292HF
Gear pump CAP 31280292HF
Gear pump, group 3, right hand., 28 ccm/rev., tapered shaft 1:8, DIN version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø19 mm, BCDØ40 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31320292HF
Gear pump CAP 31320292HF
Gear pump, group 3, right hand., 32 ccm/rev., tapered shaft 1:8, PLESSEY version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø27 mm, BCDØ51 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31360292HF
Gear pump CAP 31360292HF
Gear pump, group 3, right hand., 36 ccm/rev., tapered shaft 1:8, PLESSEY version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø27 mm, BCDØ51 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31550292HF
Gear pump CAP 31550292HF
Gear pump, group 3, right hand., 55ccm/rev., tapered shaft 1:8, PLESSEY version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø27 mm, BCDØ51 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31460292HF
Gear pump CAP 31460292HF
Gear pump, group 3, right hand., 46 ccm/rev., tapered shaft 1:8, DIN version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø51 mm, BCDØ27 mm, pressure connection Ø40 mm, BCDØ19 mm, 4xØ11 mm
235,14 EUR
235,14 EUR per St.
Gear pump CAP 31420292HF
Gear pump CAP 31420292HF
Gear pump, group 3, right hand., 42 ccm/rev., tapered shaft 1:8, DIN version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø27 mm, BCDØ51 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31500292HF
Gear pump CAP 31500292HF
Gear pump, group 3, right hand., 50 ccm/rev., tapered shaft 1:8, DIN version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø27 mm, BCDØ51 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
Gear pump CAP 31600292HF
Gear pump CAP 31600292HF
Gear pump, group 3, right hand., 60 ccm/rev., tapered shaft 1:8, DIN version, centering: Ø50,8 mm,Plessey-ports, suction connection Ø27 mm, BCDØ51 mm, pressure connection Ø19 mm, BCDØ40 mm, 4xØ11 mm
235,14 EUR
