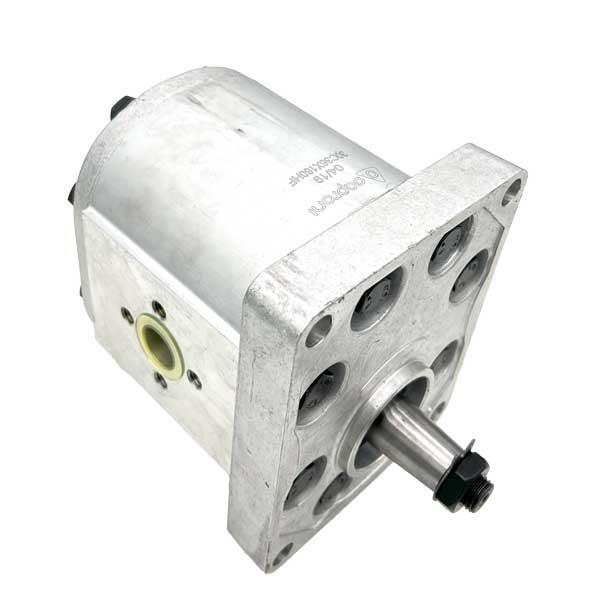

Hydraulic Gear Pump CAP 31550292HF

CAP 31550292HF, LöSi Hydraulic Gear Pump, Group 3, 55cm³, PLESSEY Version

Specifications:

• Displacement [ccm/rev]: 55
• Rotation direction: right
• Shaft: Tapered 1:8
• Centering: Ø 50.8 mm
• Flange: PLESSEY
• Flange hole: 4xØ 11 mm

Technical Data (for continuous use):

• max. speed: 1750 rev/min
• min. flow rate: 78.4 l/min
• max. flow rate: 91.4 l/min
• max. pressure: 200 bar
• Suction connection: Ø 27 mm, BCD 51 mm
• Pressure connection: Ø 19 mm, BCD 40 mm

Download datasheet Gear Pumps Group 3

Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
