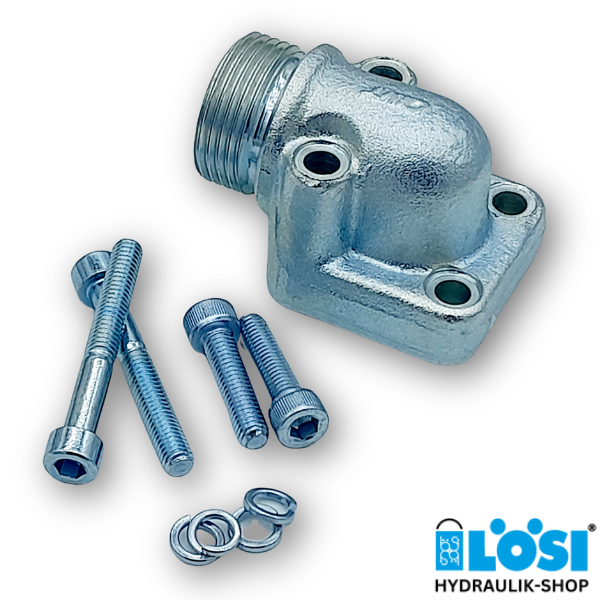

Angled flange 90°, PCD 40mm on 22L pipe, 4-hole
Connection angle flange 90°, LK 40mm on 22L pipe, 100 bar, with O-ring and mounting screws
Technical Data:
- Design: 4-hole flange 90°
- BSP thread: M30x2
- Tube diameter: 22 mm
- Bolt circle: 40 mm
- Max. Pressure [bar]: 100
- Material: Steel
- Mounting screws: 2x M6x25; 2xM6x45
- 4x spring washer
- 1x O-ring NBR
Ref.no.: RBA 35/15
Other sizes available on request.
