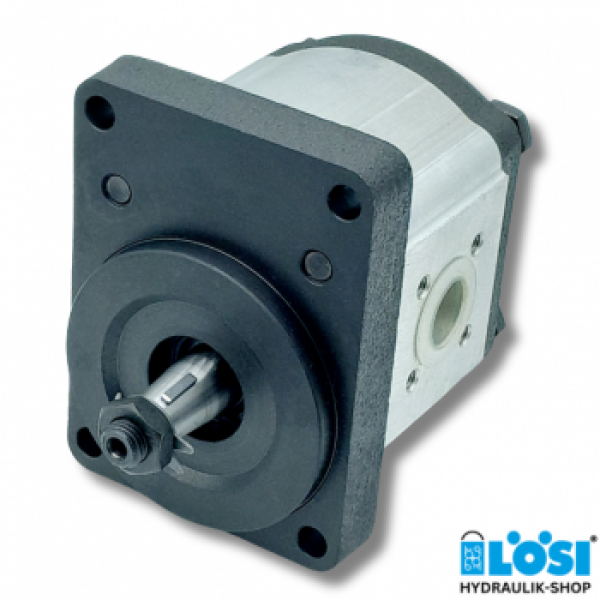

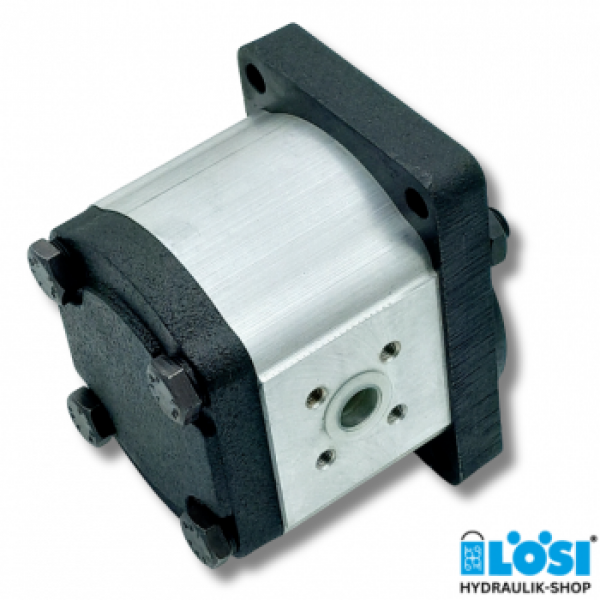

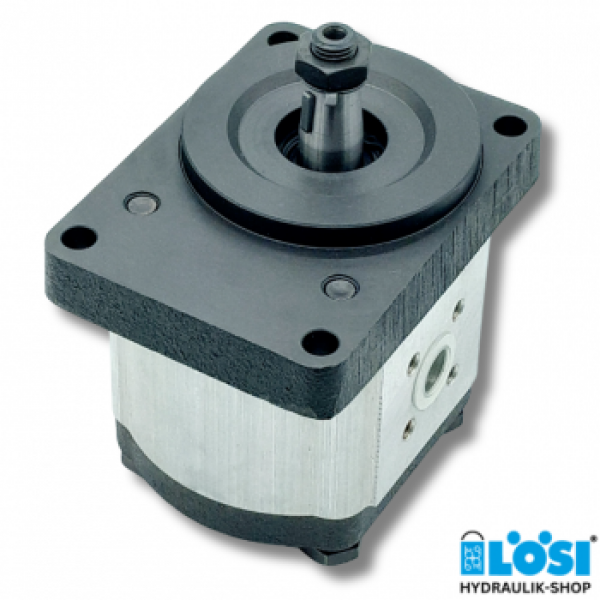

Hydraulic gear pump group 2, anticlockwise rotation, 25cm3/rev, conical shaft 1:5
Specifications:
- Displacement [ccm/rev]: 25.0
- Rotation direction: left
- Shaft: Tapered: 1:5
- Centering: Ø 80.0 mm
- Flange hole: 4x Ø 9 mm
Technical Data (for continuous use):
- max. speed: 2000 rev/min
- max. flow rate: 48.0 l/min
- max. pressure: 160 bar
- Suction connection: Ø 20.0 mm, PCD Ø 40.0 mm
- Pressure connection: Ø 15.0 mm, PCD Ø 35.0 mm
Download datasheet Gear pumps group 2
Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
Do you have any questions about our gear pumps? Do you need support in choosing the right gear pump? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with What's App.
